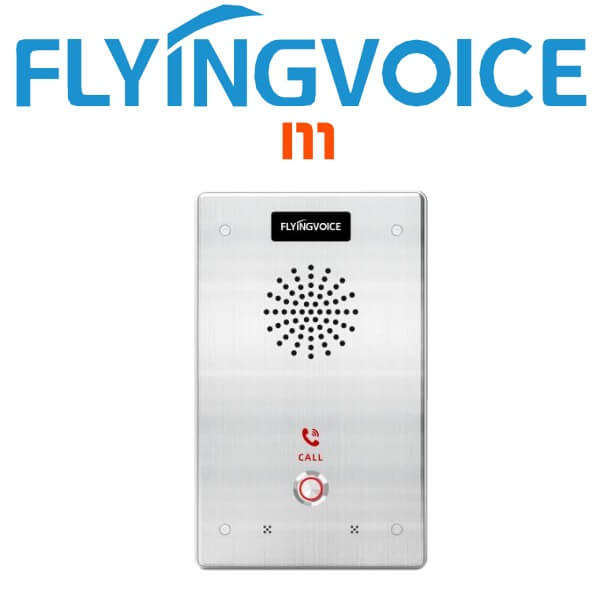

Flyingvoice i11 Audio/Video SIP Intercom Dubai
The Flyingvoice i11 Dubai Audio/Video SIP Intercom line comprises two models: the i11 and i11V, each engineered with precision and functionality. Crafted from durable high-strength aluminum alloy, the i11 boasts a robust construction that meets IP65 protection standards and IK10 vandalism resistance ratings. This design effectively shields the device from floating dust, spraying water, and hard impacts, ensuring longevity and reliability in diverse environments.
One of the key features of the Flyingvoice i11 Dubai is its versatile adaptability. With support for Power over Ethernet (PoE) supply, it can operate within a wide temperature range of -40 to 75 ℃, making it suitable for both indoor and outdoor applications across various climates. Equipped with built-in high-definition speakers and a dual-MIC-array pickup system, the i11 delivers crystal-clear audio performance.
Moreover, its intuitive LED speed dial keys enhance user experience by facilitating one-key intercom functionality and notification broadcasting. These features not only streamline communication processes but also ensure high-quality voice intercom services for users. Whether deployed in commercial, industrial, or residential settings, the Flyingvoice i11 Dubai represents a cutting-edge solution for seamless audio and video communication needs.
Main Features :
Multiple Protection Design
Made with aluminum alloy, supporting IK10 and IP65, effectively against collision, dust, splash. -40 ~ 75℃ ultra-wide temperature design to handle indoor and outdoor harsh environment situation.
One Click to Call
DSS Button, which can realize one-click call with SIP or IP point-to-point call, and broadcasting.
Strong Compatibility with SIP
Based on SIP protocols, it can easily access the mainstream IPPBX in the market and can be deployedused in both LAN and WAN.
HD Audio/Video intercom
Built-in “dual MIC array”, providing clear voice quality; Built-in 1080P HD camera with video linkage to FIP15G Plus.
Multiple Interface for a Wide Range of Connectivity
Built-in 1 short-circuit input and output interfaces which can be connected to peripherals such as infrared sensors, inductive switches, etc., to realizing triggered alarm or door opening linkage.
Easy Configuration and Effortless Management
Integrated 802.11n 2.4GHz Wi-Fi and support for online management platforms such FACS, FRPS and FDC to configure your device more conveniently even for mass deployment in seconds.
Specifications
Function Key 1* Speed Dial
Size 195mm*120mm*40mm（L*W*H）
Material
- Panel : Aluminum alloy
- Base case : iron
Button 1 Button with red light
Microphone 2
Speaker 1W 8Ω
Camera 1920*1080p（i11V）
Video Format H.264
Installation Wall-mounted
Power Supply DC 12V/1A or PoE power supply
Wi-Fi Built-in 2.4G Wi-Fi
OperatingTemperature -40~75°C
Protection Level IP65，IK10
Port and Slot
- 1 RJ45 port : 100M Ethernet Port
- 1 set of short-circuit input port : Rated voltage 12V
- 1 set of short-circuit output port : NC/COM connected by default, Rated voltage 12V,
Maximum voltage DC 30V/1A, AC 125V/0.3A
- 1 power port : DC input 12V /1A
- 1 expansion card slot for TF card
Intercom Function
Basic Function
2 SIP lines, One-touch help, One-touch alarm, Two-way intercom, Real-time broadcast, Short-circuit input/output control
IP Direct Calling Support
Function Key Support custom settings : Speed Dial, Multicast, Action Url
IP Broadcasting Long-press 3s for voice broadcast
Narrowband Encoding G.711(A/u)，iLBC，G.729A/B
Broadband Encoding G.722，Opus
HD Voice
- Duplex Intercom Acoustic Echo Cancel
- Voice Activity Detection
- Comfort Noise Generator
- Packet Loss Concealment
DTMF In-band，RFC 2833，SIP info
Network Features
Network Speed 10/100Mbps
IP Mode IPv4/IPv6/IPv4&IPv6
IP Acquisition Method Static IP setting, Dynamic DHCP acquisition（Default）
Network Security
- Support DSCP, 802.1p QoS
- Link layer discovery protocol
- VPN : OpenVPN
- Support SRTP, TLS call encryption
- Support IEEE802.1x media access control
- Time Synchronization Support SNTP, PBX, DHCP
Configuration & Maintenance
Automated Deployment
- TR069 network management (TR104/TR106)
- FTP/TFTP/HTTP/HTTPS auto configuration
- Support FACS Cloud Network Management Access
- Support Flyingvoice FRPS redirection
- DHCP Option66
Management and Maintenance
- Support Web configuration
- Support factory reset, reboot Support packet capture and system log export
IP-PBX Features
- Server-based recording capabilities
- Outbound calls
