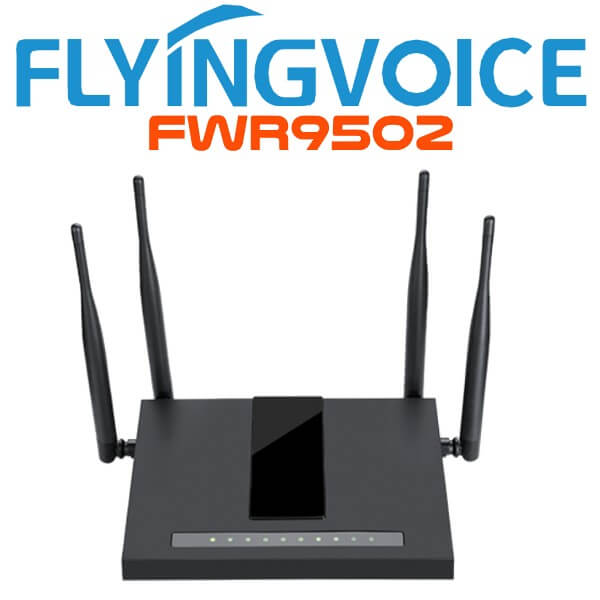

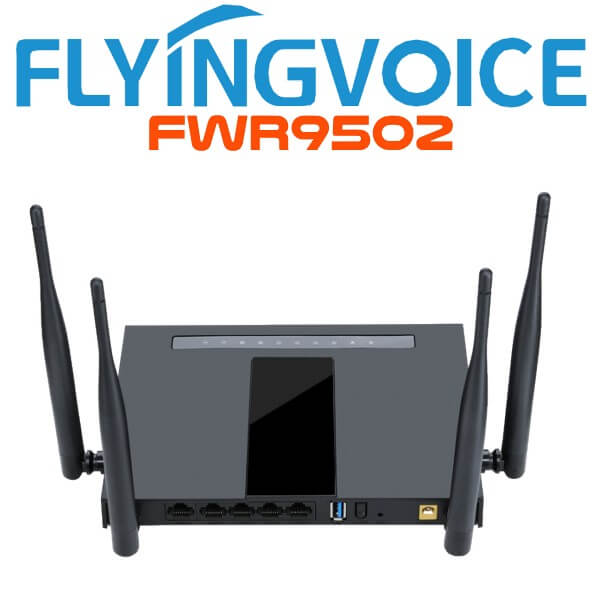

Flyingvoice FWR9502 Dual-Band VoIP Router Dubai

The Flyingvoice FWR9502 Dual-Band VoIP Router Dubai includes extended functions that support USB memory cards and a pair of FXS ports. This design not only provides users with standard VoIP and routing capabilities. Users may take FWR9502 as an FTP server, to share LAN files, pictures, and other resources. Meanwhile, 2 FXS ports are often well adapted to small and micro enterprises, 1FXS for telephone, 1FXS for Fax, no have to add additional equipment. Flyingvoice FWR9502 Dual-Band VoIP Gateway Dubai is ideally fitted to small and medium enterprises (SMB) to create a wireless office. Flyingvoice FWR9502 VoIP Wireless Router Dubaisupports IEEE802.11ac gigabit wireless LAN standard, the wireless connection speed is up to 2600Mbps and it supports both 2.4GHz and 5GHz bands. For VoIP users, the 5G band can make sure less interference and also the transmission quality. The more, users can enjoy greater bandwidth and enhanced data throughput.

Flyingvoice FWR9502 Dual-Band VoIP Router Features:

• Layer2/3 QoS
• 10/100/1000Mbps Ethernet
• Wave2
• 4*4 2.4GHz&5GHz Wi-Fi
• Real-time IP fax, T.38 and T.30
• HNAT
• WAN PoE in ( Software configurable 30/48V PoE) optional

Flyingvoice FWR9502 Dual-Band VoIP Router Specification :

Chipset Solution

• MT7621A+MT7615N(2.4GHz)+MT7615N(5GHz)

Flash

• 32MB Flash

RAM

• 128MB DDR2 RAM

Power

• AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 2A

Max TX Power

• 20 dBm

I/O Interfaces

• 1 RJ-45 for WAN Port (Ethernet 1000 Base-T)
• 4 RJ-45 for LAN Port (Ethernet 1000 Base-T)
• 2 RJ-11 for FXS Port
• 1 USB 3.0 Host Ports

Environmental

• Operation Temperature: 0~50 Degree C
• Storage Temperature: -25~ 85 Degree C
• Relative Humidity: 10%~90% No Condensing

Audio Codec

• G.711(A/u), PESQ>4.3
• G.729AB,PESQ>3.7
• G.722,G.723,G.726,iLBC
• Adaptive Jitter Buffer Management
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation
• T.30 FAX with G.711
• Real-time FAX over IP via T.38

Applications

• Support NAT mode and Bridge mode
• Support DDNS
• MAC address cloning
• NAT Traversal by STUN
• Built-in Wired speed NAT Router
• DHCP Server and Client
• IP conflict detection
• Port Forwarding, DMZ, SuperDMZ
• 802.1Q VLAN/802.1p, DSCP, Rate Limiting
• VPN(PPTP,L2TP, IPSec) Passthrough
• SNTP
• IGMPv2
• ACL(Access Control List)
• Broadcast Strom Control
• Mac Filtering
• Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
• Ipv6(Dual Stack)
• MLDv1, MLDv2

Feature Keys

• Hardware NAT(HNAT) engine with 1000Mbps NAT/NAPT speed
• 4X4 802.11n MU-MIMO (Wave2)
• 4X4 802.11ac MU-MIMO (Wave2)

Protocols

• SIP V2.0 (RFC 3261, 3262, 3263, 3264)
• SDP (RFC2327)
• RTP/RTCP (RFC823/903)
• NAPTR for SIP URI lookup (RFC2915)
• STUN (RFC2030)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• Message Waiting Indicator (RFC3842)
• DHCP Option Codes for SIP (RFC3361)
• DNS/DNS SRV (RFC1706 and RFC 2782)
• IEEE802.1Q VLAN/802.1p and IP DSCP
• IEEE 802.11a/b/g/n/ and 802.11ac Wave 2

Management

• Firmware Upgrade
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi User Level
• SNMP v2
• Telnet
• TR069
• System Log: local log and remote log

Wireless

• 5dBi Antenna(4X4)
• TX Power
  • 17dBm @ 2.4GHz 11n MCS7 HT40M
  • 17dBm @ 5GHz 11ac MCS9 VHT80M

• RX Sensitive
  • -70dBm @ 2.4GHz 11n MCS7 HT40
  • -53dBm @ 5GHz 11ac MCS9 VHT80

• Static WEP(64/128bit) ，Dynamic WEP(64/128bit)，AES(CCMP/TKIP)
• VMAC certification / WEP certification
• WPA-PSK/WPA-PSK2，WPA/WPA2
• AP Isolation and MBSSID AP Isolation
• VWMM / VWDS / WPS
• Wireless MAC Filter

Call Features

• 3-way conference
• Call hold
• Call forwarding
• Call Transfer
• Call waiting
• Caller ID and CWCID
• DTMF Relay: In-band, Out-band and SIP INFO
• QoS Layer 3
• Call Log
• CID/CWCID
• Dial Plan
• DTMF Mode: Inband, RFC2833 and SIP Info

Related certification

• FCC Part 15 Class B approval
• RoHS compliance
