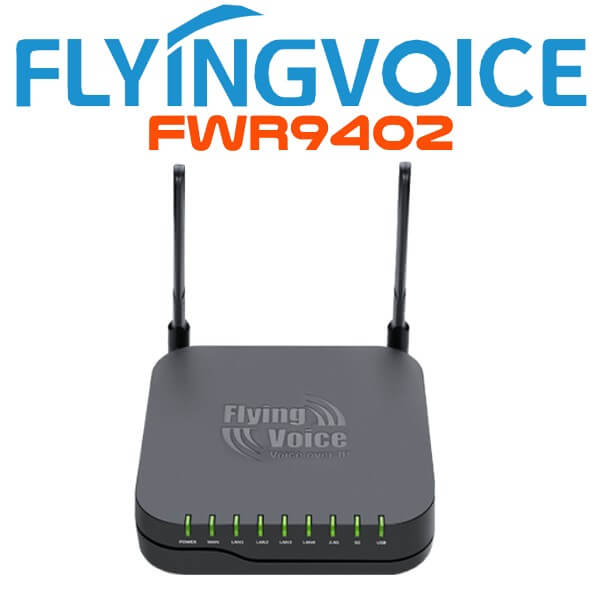

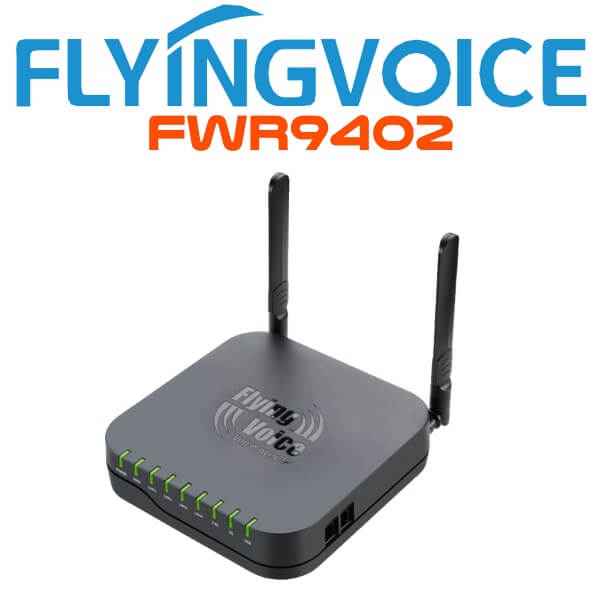

Flyingvoice FWR9402 Dual-Band VoIP Router Dubai

The Flyingvoice FWR9402 Dual-Band VoIP Router Dubai includes extended functions that support USB memory cards and a pair of FXS ports. This design not only provides users with standard VoIP and routing capabilities. Users can even take Flyingvoice FWR9402 VoIP Wireless Router Dubai as an FTP server, to share LAN files, pictures, and other resources. Meanwhile,2 FXS ports are often well adapted to small and micro enterprises,1FXS for telephone, 1FXS for Fax, no have to add additional equipment. Flyingvoice FWR9402 VoIP Wireless Router Dubai VoIP wireless router is ideally fitted to small and medium enterprises (SMB) to make wireless office. Flyingvoice FWR9402 VoIP Wireless Router Dubai supports IEEE802.11ac gigabit wireless LAN standard, the very best wireless speed is up to 867Mbps and it supports both 2.4GHz and 5GHz bands. For VoIP users, the 5G band can make sure less interference and therefore the transmission quality. The more, users can enjoy greater bandwidth and enhanced data throughput. Flyingvoice FWR9402 Dual-Band VoIP Router will be acting as VoIP Gateway so we can say the Flyingvoice FWR9402 Dual-Band VoIP Router is an wireless VoIP Gateway Dubai because of Flyingvoice FWR9402 Dual-Band VoIP Router has dual-band Wi-FI option.

Flyingvoice FWR9402 Dual-Band VoIP Router Features :

• Support QoS
• 10/100/1000Mbps Ethernet
• Support Wave2
• Support 2*2 2.4GHz&5GHz Wi-Fi
• Real-time IP fax, T.38 and T.30
• Support HNAT
• WAN PoE output ( Software configurable 30V PoE / 48V 802.3af)

Flyingvoice FWR9402 Dual-Band VoIP RouterSpecifications :

VoIP SoC

• CPU: MIPS Dual-core 880MHz

Flash

• 16MB Flash

RAM

• 64MB DDR2 RAM

Power

• AC/DC Adapter
• AC Input: 100~240V, 50~60Hz
• DC Output: 12V, 1.5A

Operating System

• Linux 2.6.36

I/O Interfaces

• 1 RJ-45 for WAN Port (Ethernet 1000 Base-T)
• 4 RJ-45 for LAN Port (Ethernet 1000 Base-T)
• 2 RJ-11 for FXS Port
• 1 USB 3.0 Host Ports

Environmental

• Operation Temperature: 0~50 Degree C
• Storage Temperature: -25~ 85 Degree C
• Relative Humidity: 10%~90% No Condensing

Audio Codec

• G.711(A/u), PESQ>4.3
• G.729AB, PESQ>3.7
• Adaptive Jitter Buffer Management
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation
• T.30 FAX with G.711
• Real time FAX over IP via T.38

Applications

• Support NAT mode and Bridge mode
• Support DDNS
• MAC address cloning
• SIP proxy redundancy
• NAT Traversal by STUN
• Built-in Wired speed NAT Router
• DHCP Server and Client
• IP conflict detection
• Port Forwarding, DMZ
• 802.1Q VLAN/802.1p, DSCP, Rate Limiting
• VPN (PPTP, L2TP, IPSec) Passthrough
• SNTP
• IGMPv2, IGMPv3
• ACL(Access Control List)
• Broadcast Strom Control
• Mac Filtering
• Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
• IPv6(Dual Stack)
• MLDv1, MLDv2

Feature keys

• Hardware NAT(HNAT) engine with 1000Mbps speed
• Support VoIP FXS port with SIP and T.38 FAX
• 1 USB 3.0 Host Ports for storage and printer

Protocols

• SIP V2.0 (RFC 3261, 3262, 3263, 3264)
• Backward Compatible with RFC2543
• Session Timer (RFC4028)
• SDP (RFC2327)
• RTP/RTCP (RFC823/903)
• NAPTR for SIP URI lookup (RFC2915)
• STUN (RFC2030)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• TFTP/HTTP for Auto Provisioning
• Message Waiting Indicator (RFC3842)
• DHCP Option Codes for SIP (RFC3361)
• DNS/DNS SRV (RFC1706 and RFC 2782)
• IEEE802.1Q VLAN/802.1p and IP DSCP

Management

• Firmware Upgrade
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi User Level
• SNMP v2
• Telnet
• TR069
• System Log: local log and remote log

Wireless

• 4 SSID Per Radio
• Static WEP(64/128bit)
• Dynamic WEP(64/128bit)
• AES(CCMP/TKIP)
• MAC certification
• WEP certification
• WPA-PSK/WPA-PSK2
• WPA/WPA2
• AP Isolation and MBSSID AP Isolation
• WMM
• WDS
• WPS
• Wireless MAC Filter

Call Features

• 3-way conference
• Call hold
• Call forwarding
• Call Transfer
• Call waiting
• Caller ID and CWCID
• DTMF Relay: In-band, Out-band and SIP INFO
• QoS Layer 3
• Call Log
• CID/CWCID
• Dial Plan
• DTMF Mode: Inband, outband and SIP Info

Call Features Applications

• FCC Part 15 Class B appoval
• CE certification
• RoHS compliance

SIZE and Weight

• 173mm(L)x153mm(W)x40mm(H)
• 330g(N.W)
