Description

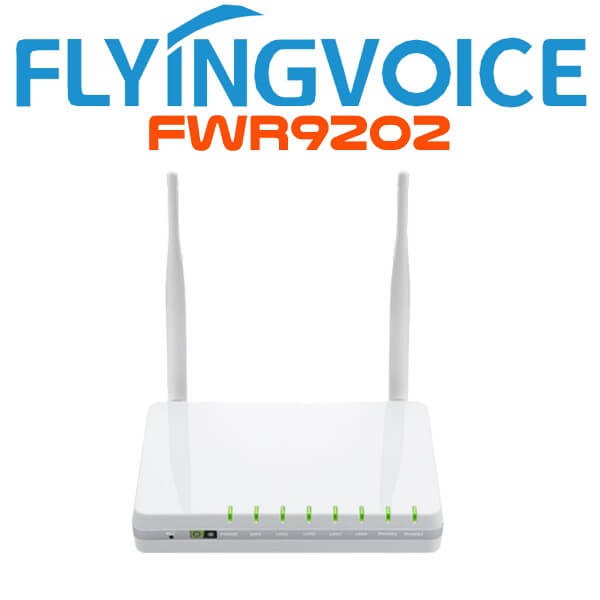

Flyingvoice FWR9202 Dual-Band VoIP Router Dubai

The Flyingvoice FWR9202 Dual-Band VoIP Router Dubai which has one FXS port, four LAN ports and one WAN port, maybe a wireless router with embedded VoIP ATA functions. This product won’t only allow you to form an ATA call using your broadband connection, but also it provides Wi-Fi router function, which makes you enjoy an easy network atmosphere. What’s more, FWR9202 supports T.38 real-time FAX and T.30 Fax with G.711.The Flyingvoice FWR9202 Wireless VoIP Gateway Dubai may be a stand-alone device, which needs no PC to create Internet calls. This product guarantees a clear and reliable voice on the Internet, which is fully compatible with the SIP industry standard and able to interoperate with many other SIP devices and software on the market. Flyingvoice FWR9202 VoIP Wireless Router Dubai isn’t only wired Internet share capabilities but also offers access (AP) function for daily wireless communication. With the advanced router, Flyingvoice FWR9202 VoIP Wireless Router Dubai is in a position to form calls via SIP proxy voice communications, plus the IP sharing, and also the QoS mechanism.

Flyingvoice FWR9202 Dual-Band VoIP Router Features :

• Support QoS
• 10/100Mbps Ethernet
• Support 5GHz 867Mbps WiFi
• Support 2.4GHz 300Mbps WiFi
• Real-time IP fax, T.38 and T.30

Flyingvoice FWR9202 Dual-Band VoIP Router Specifications :

VoIP SoC

• CPU:MT7620A MIP1004KC 580MHz

Flash

• 16MB Flash

RAM

• 64MB DDR2 RAM

Power

• AC/DC Adapter

AC Input: 100~240V, 50~60Hz

DC Output: 12V, 1.5A

Operating System

• Linux 2.6.36

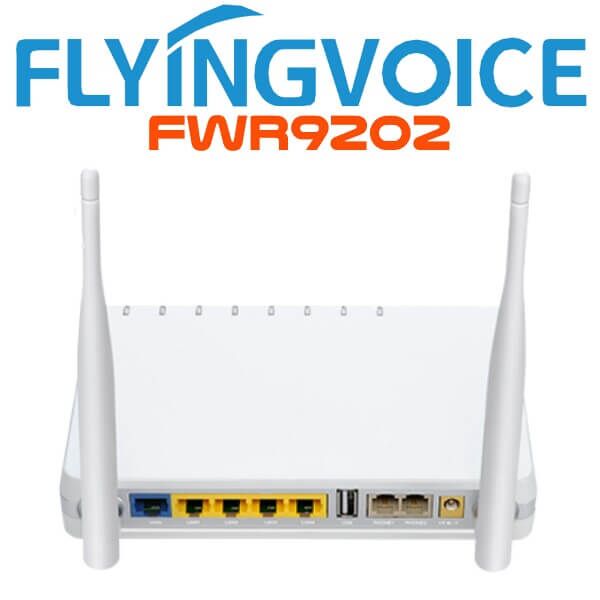

I/O Interfaces

• 1 RJ-45 for WAN Port (Ethernet 100 Base-T)
• 4 RJ-45 for LAN Port (Ethernet 100 Base-T)
• 2 RJ-11 for FXS Port
• 1 USB 2.0 Host Ports
• IEEE802.11 b/g/n
• IEEE802.11 ac

Environmental

• Operation Temperature: 0~50 Degree C
• Storage Temperature: -25~ 85 Degree C
• Relative Humidity: 10%~90% No Condensing

Audio Codec

• G.711(A/u),PESQ>4.3
• G.729AB,PESQ>3.7
• Adaptive Jitter Buffer Management
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation
• T.30 FAX with G.711
• Real time FAX over IP via T.38

Key Features

• Hardware NAT(HNAT) engine with 100Mbps NAT/NAPT speed
• 2X2 2.4G 802.11 b/g/n(300 Mbps)
• 2X2 5G 802.11ac (867 Mbps)
• 2.4GHz and 5GHz should work simultaneously
• Support VoIP FXS port with SIP and T.38 FAX
• 1 USB 2.0 Host Ports for storage

Management

• Firmware Upgrade
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi User Level
• SNMP v2
• Telnet
• TR069
• System Log: local log and remote log
• Suppo Support Flying FCMS Cloud Management

Protocols

• SIP V2.0 (RFC 3261, 3262, 3263, 3264)
• Session timer (RFC4028)
• SDP (RFC2327)
• RTP/RTCP (RFC823/903)
• NAPTR for SIP URI lookup (RFC2915)
• STUN (RFC2030)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• HTTP Server for Web Management
• TFTP/HTTP for Auto Provisioning
• Message Waiting Indicator (RFC3842)
• DHCP Option Codes for SIP (RFC3361)
• DNS/DNS SRV (RFC1706 and RFC 2782)
• IEEE802.1Q VLAN/802.1p and IP DSCP

Applications

• MAC address cloning
• NAT Traversal by STUN
• Built-in Wired speed NAT Router
• DHCP Server and Client
• IP conflict detection
• Port Forwarding, DMZ, SuperDMZ
• 802.1Q VLAN/802.1p, DSCP, Rate Limiting
• VPN(PPTP,L2TP, IPSec) Passthrough
• SNTP
• IGMPv2, IGMPv3
• ACL(Access Control List)
• Broadcast Strom Control
• Mac Filtering
• Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS)
• Ipv6(Dual Stack)
• MLDv1, MLDv2

Wireless

• 4 SSID Per Radio
• Static WEP(64/128bit)
• Dynamic WEP(64/128bit)
• AES(CCMP/TKIP)
• MAC certification
• WEP certification
• WPA-PAK/WPA-PSK(2.0)
• WPA/WPA2
• AP Isolation and MBSSID AP Isolation
• WMM
• WDS
• WPS
• Station list
• Radius certification and billing
• MAC Filter(different from wired MAC Filter)

Call Features

• 3-way conference
• Call hold
• Call forwarding
• Call Transfer
• Call waiting
• Caller ID and CWCID
• DTMF Relay: In-band, Out-band and SIP INFO
• QoS Layer 3
• Call Log
• CID/CWCID
• Dial Plan
• DTMF Mode: Inband, RFC2833 and SIP Info

Regulatory

• FCC Part 15 Class B appoval
• CE certification
• RoHS compliance

SIZE and Weight

• 173mm(L)x153mm(W)x40mm(H)
• 300g(N.W)
