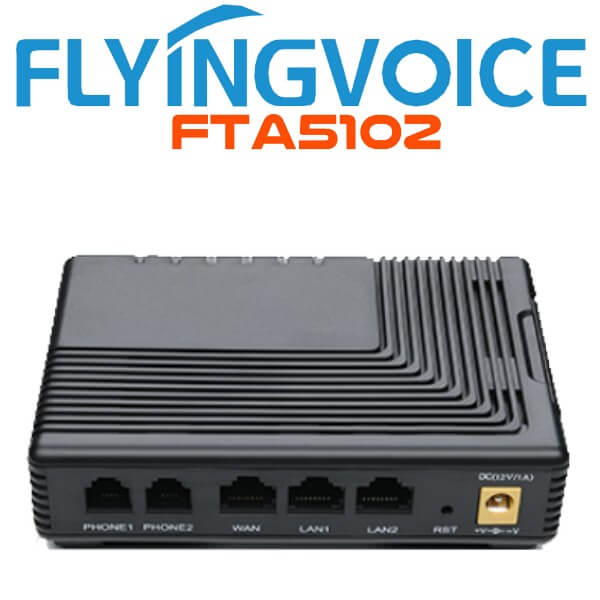

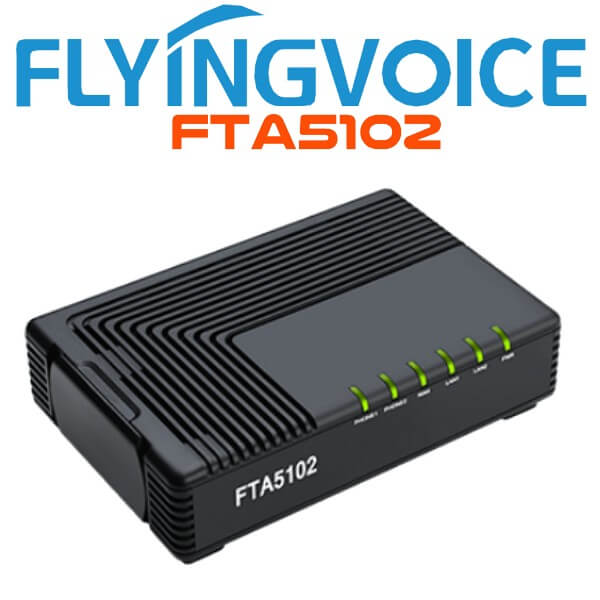

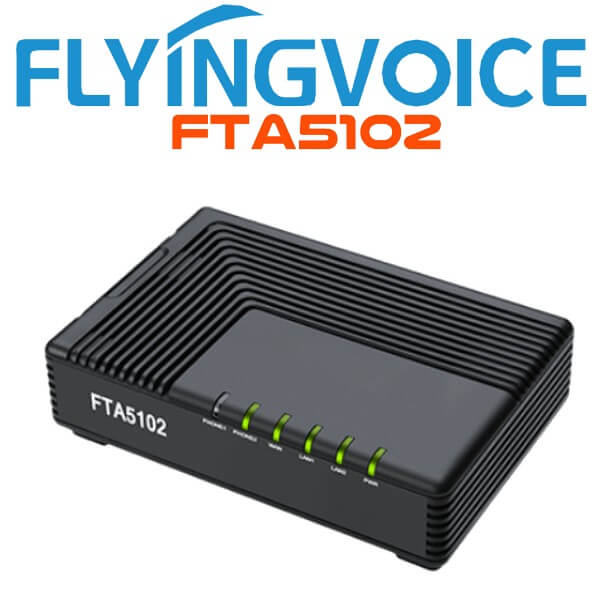

Flyingvoice FTA5102 VoIP Phone Adapter Dubai

Flyingvoice FTA5102 VoIP Phone Adapter, which has two FXS ports, one LAN port, and one WAN port, is one amongst the foremost popular VoIP ATAs researched and produced by FlyingVoice. This product cannot only provide two SIP lines for users to create calls but also it’s a wire-speed NAT router, cause you to enjoy easy network atmosphere. What’s more, FTA5102 supports T.38 real-time FAX and T.30 FAX with G.711.Flyingvoice FTA5102 VoIP Phone Adapter may be a stand-alone device, which needs no PC to form Internet calls. This ATA guarantees clear and reliable voice quality on the Internet, which is fully compatible with SIP industry standard and able to interoperate with many other SIP devices and software on the market.The Flyingvoice FTA5102 VoIP Gateway Dubai, 2 FXS Analogue Telephone Adapter products in Flyingvoice, which enables customers to register to different SIP Proxy server, IP PBX and establish up to 2 concurrent VoIP needs more flexibility within the speech.heir compact size, excellent voice quality, packed feature functionality and best-in-class price-performance point enable consumers to maximize the ability of IP voice and data connectivity. Flyingvoice FTA5102 VoIP Phone Adapter relies on SIP V2.0 standard and compatibility with most service providers.TR069 CPE management & monitoring protocols and a base symbolize vertical positioning.

Flyingvoice FTA5102 VoIP Phone Adapter Features :

• 2 FXS Ports
• T.38 And T.30 FAX
• TR069,SNMP
• 10/100Mbps Ethernet

Flyingvoice FTA5102 VoIP Phone Adapter Specifications :

VoIP SoC

• CPU:RT5350

Flash

• 16MB Flash

RAM

• 32MB SDRAM

Power

• AC/DC Adapter
• AC Input: 100~240V, 50~60Hz
• DC Output: 12V, 1A

Operating System

• Linux 2.6.21

I/O Interfaces

• 3 RJ-45 for 10/100Ethernet Ports
• 2 RJ-11 for FXS Port

Environmental

• Operation Temperature: 0~50 Degree C
• Storage Temperature: -25~ 85 Degree C
• Relative Humidity: 10%~90% No Condensing

Audio Codec

• G.711(A/u),PAMS>4.3
• G.729A/AB,PAMS>4.0
• T.30 FAX with G.711
• Real time FAX over IP via T.38(Phone 2 port only)
• Adaptive Jitter Buffer
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation

Management

• Firmware Upgradeable
• Web Management Interface
• IVR-driven Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provisioning
• SNTP Time Synchronization
• Multi User Level
• Support IPv6
• SNMPv2
• TR069

Protocols

• SIP V2 (RFC 3261,3262,3263,3264)
• Backward Compatible with RFC2543
• Session Timer (RFC4028)
• SDP (RFC2327)
• RTP/RTCP (RFC1889 and RFC1890)
• NAPTR for SIP URI Lookup (RFC2915)
• STUN (RFC 3489)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• PPTP/L2TP VPN
• HTTP Server for Web Management
• TFTP/HTTP/HTTPS for Auto Provisioning
• DNS/DNS SRV (RFC1706 and RFC 2782)

Applications

• NAT/NAPT Router function
• MAC Address Cloning
• DHCP Server
• PPTP/L2TP VPN
• PPPoE
• SIP proxy redundancy
• Dynamic via DNS SRV, A records
• NAT Traversal by STUN
• DMZ
• QoS with Layer 3
• DHCP Client and DHCP Server
• IP conflict detectionv

Call Features

• 3-way Conference
• Music on hold
• DTMF mode: In-band, RFC2833 and SIP INFO
• Call Hold
• Call Forwarding
• Call Mute
• Call Transfer
• Call Waiting
• Speed Dial
• Caller ID and CWCID
• Hotline
• Real time fax over IP via T.38
• T.30 FAX with G.711
• Dial Plan
• Black List
• Call Log

SIZE And Weight

• 120mm(L)x80mm(W)x32.5mm(H)
• 119g(N.W)
