Description

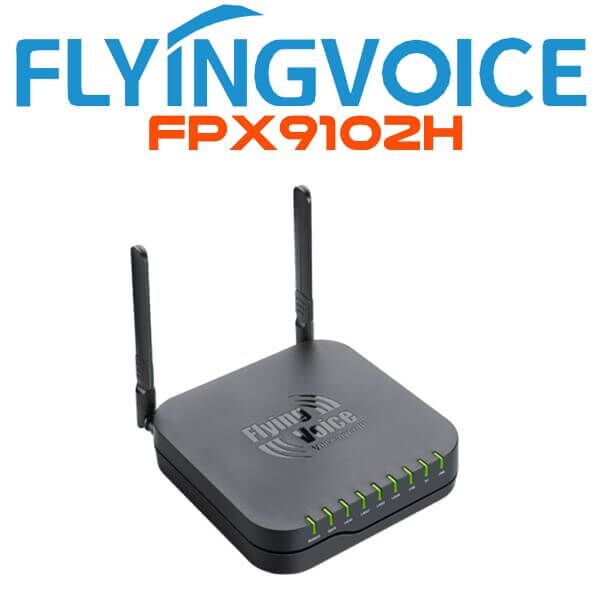

Flyingvoice FPX9102H Dual-Band VoIP Router Dubai

Flyingvoice FPX9102H Wireless Router Dubai network management type dual FXO port wireless VoIP router is one of the foremost popular converged gateway products developed and produced within the era of Flyingvoice. This Flyingvoice FPX9102H Dual-Band VoIP Router cannot only provide users with 2 FXO ports for connecting phone lines but also provide two external line concurrent call functions. The built-in asterisk also supports 50 extension numbers, which may be used as a little PBX to fulfill the decision needs of small and medium enterprises. Five Gigabit Ethernet ports and dual-band 1200Mbps wireless can simultaneously provide the necessities of wired / wireless connection within the office; the USB 2.0 interface is connected to a U disk and may be used as a TFTP server or Samba server to produce file storage and transmission functions. The black body is straightforward and stylish, and the business shape is more suitable for business use. It supports automatic discovery and zero-configuration IP terminals for user deployment. Flyingvoice FPX9102H Wireless VoIP Gateway Dubai is also compatible with most network service providers, supports automatic configuration, and TR069 remote management. Small businesses, home offices, remote offices, and multi-branch businesses provide a low-cost, easy-to-use IP voice phone solution.

Flyingvoice FPX9102H Dual-Band VoIP Router Features :

• 2 FXO Ports
• Support Asterisk
• TR069 & Auto-provision
• 10/100/1000Mbps Ethernet
• Supports 5GHz & 2.4GHz

Flyingvoice FPX9102H Dual-Band VoIP Router Specifications :

Power

• AC/DC Adapter
• AC Input: 100~240V, 50~60Hz
• DC Output: 12V, 2A

Operating System

• Linux 2.6.36

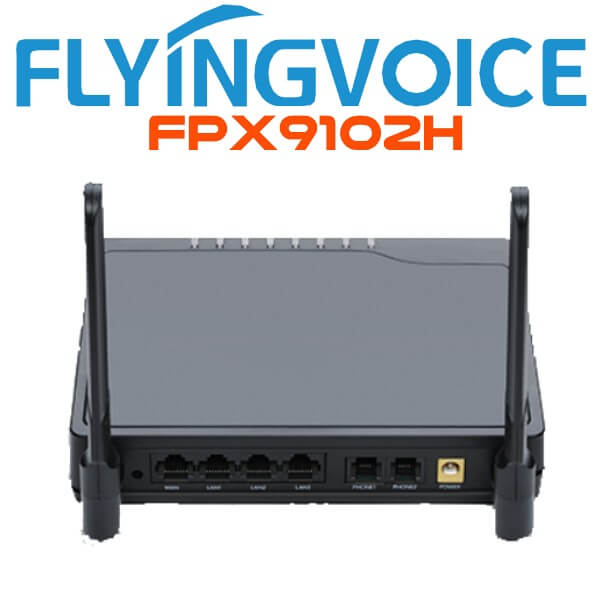

Interfaces

• 1 RJ-45 Gigabit WAN port
• 4 RJ-45 Gigabit LAN ports
• 2 RJ-11 FXO ports
• 1 USB 2.0 Port
• Reset key

Button

• Power button
• Reset button

Environmental

• Operation Temperature: -5~45 Degree C
• Storage Temperature: -25~ 85 Degree C
• Relative Humidity: 10%~90% No Condensing

Audio Codec

• G.711(A/u), PAMS>4.3
• G.729A/AB, PAMS>4.0
• T.30 FAX with G.711
• Adaptive Jitter Buffer
• Voice Activity Detection
• Comfort Noise Generation
• Echo Cancellation

Wireless

• Support 802.11 b/g/n 300Mbps MIMO
• Support 802.11 a/an/ac 867Mbps MIMO
• 8 SSID
• Security Mode: OPENWEP (64/128bit), WPA-PSK/WPA2-PSK, WPA-PSK, WPA2-PSK
• AP Isolation and MBSSID AP Isolation
• WMM
• WDS
• Station list
• MAC Filter (different from wired MAC Filter)

Management

• Firmware Upgrade
• Web Management Interface
• Local and Remote Syslog (RFC3164)
• Auto Provision
• SNTP Time Synchronization
• Multi User Level
• SNMPv2
• TR069
• Network diagnosis

Protocols

• SIP V2.0 (RFC 3261)
• Backward compatible with RFC2543
• Session timer (RFC4028)
• SDP (RFC2327)
• RTP/RTCP (RFC1889/RFC1890)
• NAPTR for SIP URI lookup (RFC2915)
• STUN (RFC2030)
• ARP/RARP (RFC 826/903)
• SNTP (RFC 2030)
• DHCP/PPPoE
• HTTP Server for Web Management
• TFTP/HTTP/HTTPS for Auto Provision
• Message Waiting Indicator (RFC3842)
• DHCP Option Codes for SIP (RFC3361)
• DNS/DNS SRV (RFC1706 and RFC 2782)
• TR069 (TR098, TR104)
• IEEE802.1Q VLAN/802.1p/DSCP
• SNMP v2

Applications

• Support Asterisk
• Support 50 extensions
• Support 25 concurrent calls
• Support voice conference room
• SIP trunk
• IVR
• VPN: PPTP, L2TP, OpenVPN
• DDNS
• QoS
• Static route
• Firewall
• 2 PSTN Trunks ( FXO ports )

FXO port features

• Busy tone detection
• No current streak detection
• Voice interrupt detection
• One-time dialing
• Dial two times
• PSTN Outside Port Poll
• Supports reverse polarity signal
• FAS (Fake billing correction)
• AC / DC impedance configuration
• Caller ID (Bellcore Type 1 & 2,ETSI, DTMF)

Dimensions And Weight

• 153mm(L)x153mm(W)x35mm(H)
• 330g(N.W)
