Fanvil X1W Dubai

Reviews

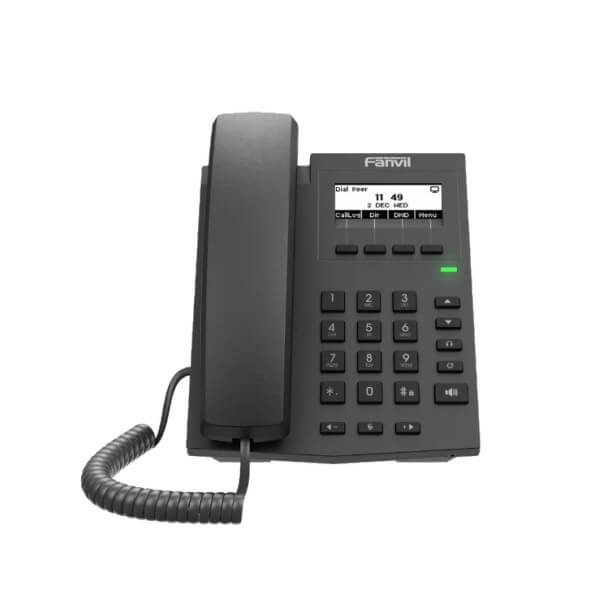

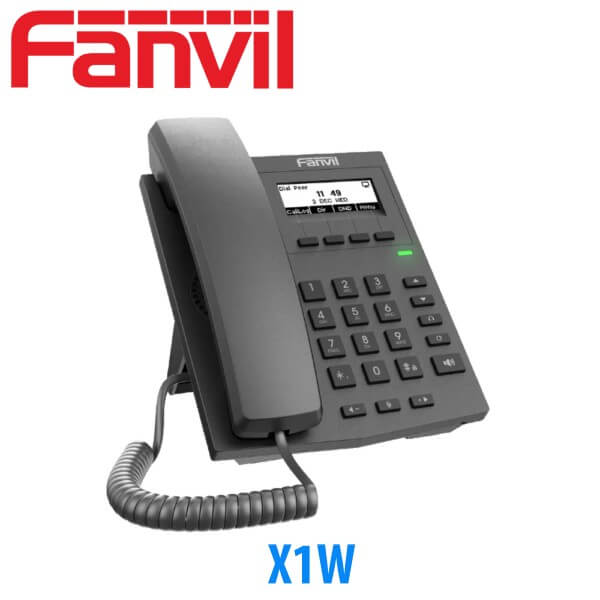

Fanvil X1W Dubai

With a large 128×48 dot matrix display, the Fanvil X1W Dubai not only gives you a quick access to details, but also offers an enhanced visual clarity. The phone provides a friendly user interface, supports two calls, and is designed to enhance and significantly improve costs.

Ask for Quote & Get Low Price

Description

Fanvil X1W Entry-Level VoIP Phone Dubai

The Fanvil X1W Dubai is a cost-effective VoIP phone that is optimized for use in hotels and businesses that have high communication needs. It is a highly reliable phone that is fitted with numerous features to enhance the communication experience of its users. With a large 128×48 dot matrix display, the Fanvil X1W Dubai not only gives you a quick access to details, but also offers an enhanced visual clarity. The phone provides a friendly user interface, supports two calls, and is designed to enhance and significantly improve costs.

Features

  • 2 SIP accounts
  • HD Audio
  • 1248 x 48 . dot matrix LCD display
  • Handset mode : Hands-free
  • EHS support for Plantronics and Jabra . headsets
  • 4 Function keys (up, down, headset, redial)
  • Tripartite conference
  • Built-in 2.4GHz Wi-Fi
  • Support 2 volume adjustment fee
  • Support Call Forwarding (Always / Busy / No Answer)

The X1W IP Dubai phone is fitted with all the features from business phones, such as full-duplex headset and speakerphone mode, PoE, Fast Ethernet, QoS, secure transmission, auto provisioning, and more.

Features of Fanvil X1W Wifi Wifi Phone

  • Easy web installation and configuration
  • 500 phonebook, caller ID, call waiting/restore, call forwarding, 2-line headband support, allowing you to make and receive split calls on two different SIP phone lines.
  • Fast Ethernet 10/100Mbps Ethernet with POE (X1P) enabled
  • High interoperability Compatible with the most important platforms : 3CX, Asterisk, Broadsoft, Elastix, Xorcom, Zycoo, etc.

Features of Fanvil X1W SIP SIP phone

  • 2 SIP account operation : Together with 2 SIP lines, Fanvil X1W Dubai allows you to dial and receive calls on two different phone lines
  • PoE (Power over Ethernet) Available : 10/100 Mbps with PoE, you online need to connect with ethernet cable, reducing the number of wires on your desk
  • Trilateral conference support : Allows you to have a 3-way chat between you and 2 other parties
  • Easy web-based configuration : With web-based configuration, you can configure Fanvil X1W Dubai IP Phone easily with no much problems
  • Contacts 500 contacts : Easily store and dial frequently dialed numbers
  • Backlit grid display : Facilitates easy-to-read access, 128×48 resolution, black and white backlit display
  • Easily store and dial frequent incoming calls : Allows you to quickly see the name, number, date, and time of incoming calls. Fanvil X1W Dubai is featured with call hold/restore, call transfer, bring you more convenience.
  • Compatible with major platforms : Fanvil X1W Dubai is compatible with 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.
  • Headset support : Talk “hands-free” with a headset (RJ9 port)

Fanvil X1W Dubai IP Phone offers users a more convenient operation method, and it can become an effective business office assistant.

Technical Specs

Generic
  • 2 SIP Lines
  • Dot-matrix Screen without backlight
  • Handset / Hands-free / Headset mode
  • Desktop Stand
Phone Features
  • Local Phonebook (1000 entries)
  • Remote Phonebook (XML/LDAP, 1000 entries)
  • Call logs (In/out/missed, 600 entries)
  • Black/White List Call Filter
  • Voice Message Waiting Indication (VMWI)
  • Programmable Soft keys
  • Network Time Synchronization
  • Built-in 2.4GHz Wi-Fi (X1W Only)
  • Network standard : IEEE 802.11b/g/n
  • Transmission rate : Up to 150Mbps (dynamic)
  • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (on Server)
  • Action URL / Active URI
  • UaCSTA
Call Features
  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (On server)
  • 5-way Audio Conference
  • Hot Line
  • Hot desking
Audio
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec : G.711a/u, G.723.1, G.726, G.729A/B, iLBC
  • Wideband Codec : G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF : In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Network
  • Physical : 10/100Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode : IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static IP / DHCP / PPPoE
  • Network Access Control : 802.1x
  • VPN : L2TP / OpenVPN
  • VLAN
  • LLDPCDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • CDP
  • LLDP
  • PPPoE
  • 802.1x
  • OpenVPN (Requires third-party app support)
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
Deployment & Management
  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Supports Web upgrade
  • Supports factory reset data
Physical Specifications
  • Color : Black
  • LCD x1 : 128×48 dot-matrix Screen without backlight
  • Keypad : 24 keys, including
  • 4 Soft-keys
  • 4 Function keys (Up, Down, Headset,    Redial)
  • 12 Standard Phone Digits keys
  • 2 Volume Control keys Lower/Increase(Left/Right)
  • Mute key
  • 1 Hands-free key
  • Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • Back Rack x1
  • RJ9 Port x2 : Handset x1, Headset x1
  • RJ45 Port x1 : Network x1
  • Power : 5V/0.6A or PoE
  • Working Temperature : 0~45℃
  • Working Humidity : 10~95%
  • Installation : Desktop Stand
  • Device Dimensions : 210.7×207.2x162mm
  • Gift Box Dimensions : 250x205x66mm
  • Outer CTN Dimensions : 420x340x265mm (10 PCS)
