Description

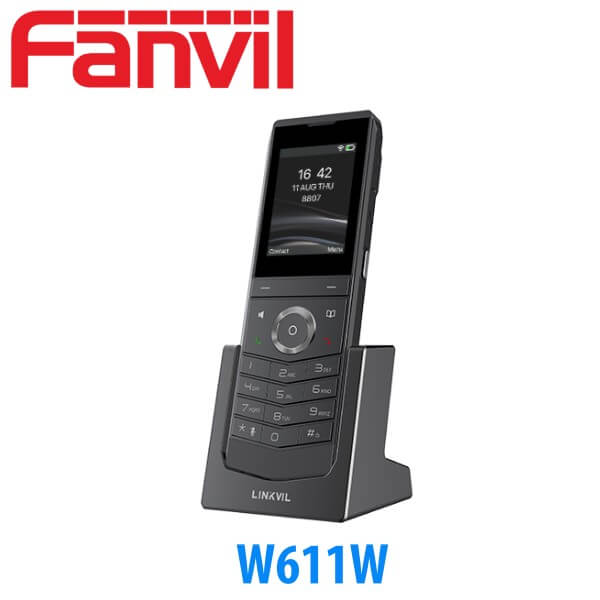

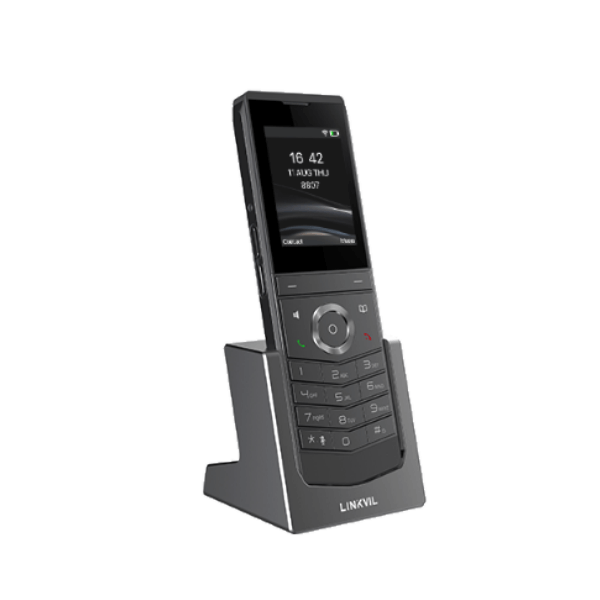

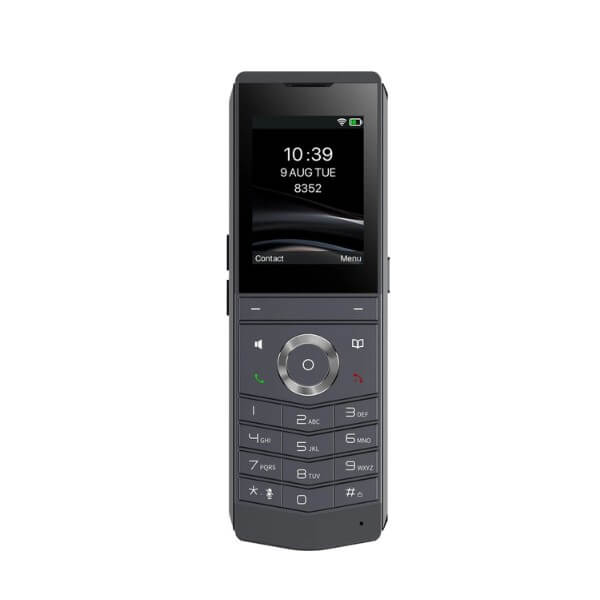

Fanvil W611W Wi-Fi Phone Dubai
The Fanvil W611W Dubai is a highly waterproof, dustproof, IP67-Certified Wi-Fi phone which has been designed for mobile communication applications. It integrates Wi-Fi 6, bringing a superb wireless communication experience. Moreover, it integrates Bluetooth 5.0 for pairing with headsets and mobile devices. The W611W Dubai can be dropped safely from a 1.8-meter height. It has excellent performance in different environments with humidity and dust.
Installed with a rechargeable 1900mAh battery, the Fanvil W611W Dubai is ready for 9 hours’ talk time or 200 hours standby time. The W611W is widely used in various wireless scenarios such as enterprises, shopping malls, residential areas, hotels and warehouses, providing users with high-quality mobile communication experience.
Features
- Â 2.4″ 240 x 320 colour screen with intuitive user interface
- High protection level of IP67
- Dual-band Wi-Fi 802.11 a/b/g/n/ac/ax Wi-Fi (Wi-Fi 6, 2.4GHz & 5GHz)
- IEEE802.11k/v/r roaming
- WPA / WPA2-PSK and 802.1X EAP encryption to ensure communications security
- Push-to-talk (PTT) button for quick dial
- Up to 9 hours’ talk time and up to 200 hours standby time
Technical Specifications
Generic
- 2.4-inch 240*320 color high-definition LCD display
- 4 SIP lines
- Caller ID
- Handset/Hands-free/Headset Mode• Support custom DSS keys
- HD Voice
- Belt clip
- Desktop charging base
- Standard type-c interface
- Rechargeable Lithium Battery
- Support Wi-Fi 6
- Support Bluetooth 5.0
- Support multi language : English/Chinese/German/French/Italian/Portuguese/Russian/Spanish
Phone Features
- Network time synchronization
- Local contacts
- Remote Phonebook (XML/LDAP, 1000 entries)
- Multi-language optional
- Call logs
- Blocked List/Allowed List
- Screen saver
- Personalized ringtone settings
- Screen backlight adjustment
- Memorandum
- SMS service
- Voicemail(MWI)
- Menu encryption settings
- Keypad lock/ backlight adjustment
- Volume adjustment
Call Features
- Auto-Answering
- Call out/Answer/Reject
- Call waiting/Switch
- Call forwarding
- Speed Dial
- Intercom
- Anonymous calls
- 3-way Conference
- Restrict outgoing calls
- IP direct dial
- Speed Dial
- Emergency call
- Caller ID Display
- Inquiry (dialing, incoming and outgoing calls)
- Do-Not-Disturb
- PTT one-key call
- Self-adaptive light-sensing screen off (during a call on the handset)
Audio
- Narrowband Codec : G.711a/u, G.729AB,iLBC
- Wideband Codec : G.722, Opus
- Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
- Voice Activity Detection(VAD)/ Comfort Noise Generation(CNG)/ Background Noise Estimation (BNE)
- Packet Loss Concealment
- Dynamic adaptive jitter cache up to 300ms
- DTMF : In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIPINFO
Network
- Built-in Wi-Fi, support 802.11 a/b/g/n/ac/ax protocol : 2.4GHz IEEE 802.11 b/g/n/ax 5GHz IEEE 802.11a/n/ac/ax Encryption:WPA /WPA2-PSK,802.1XEAP
- Built-in Bluetooth 5.0 module
Power Management
- Reminder when charging
- Full reminder
- Low battery prompt
- After abnormal shutdown, the charging will automaticallystar
- Real-time statistics/display of system power
Protocols
- RTP/RTCP/SRTP
- STUN
- HCP
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment and Maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIPPnP/TR-069
- Web management interface
- Web-based Packet-dump
- Configuration export/import
- Firmware upgrade
- Syslog
Physical Specifications
- Protection class : IP67
- Drop height : 1.8m
- Shell material : plastic shell, two-color injection molding
- Charging Base x1
- Belt Clip x1
- Rechargeable Battery x1 1900mAh
- DC input : 5V/2A
- Charging port : Type-c
- Headphone jack : 3.5mm standard jack
- Installation method : Belt Clip /Desktop
- Operating temperature : 0℃~ 45℃
- Storage temperature : -20℃~ 60℃
- Relative humidity : 10~95%
- Product size : 160*53*16mm
- Product weight: : 156g
- Certificates:CE/FCC/UKCA/RoHS/SRRC
- Box size : 200*117*103mm
- Outer box size : 437*254*220mm ((8PCS)
