Description

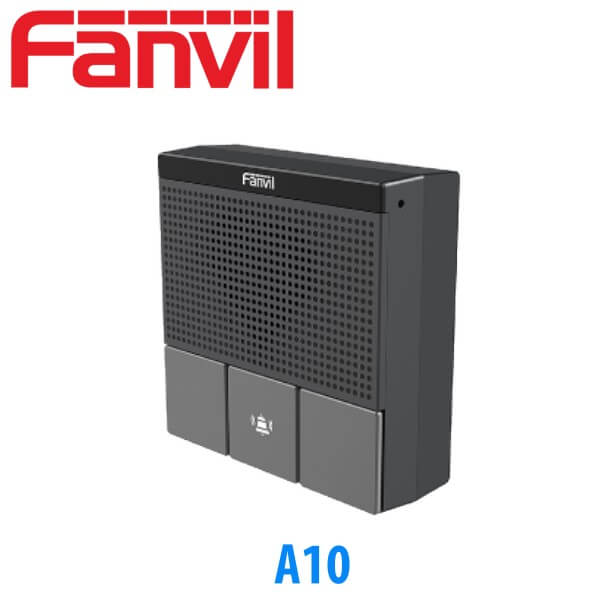

Fanvil A10 SIP Intercom Dubai

The Fanvil A10 Dubai SIP mini intercoms are purposefully crafted for indoor environments, catering to security, intercom, and broadcasting needs. Boasting a sleek and modern design, these intercoms offer a host of features aimed at enhancing user experience and functionality. With the capacity for 2 SIP accounts and 3 detachable function buttons, along with PoE power supply, they provide seamless communication solutions.In addition to their compact and stylish appearance, the A10 series offers an array of advanced functionalities. These include HD audio capabilities, IP54 waterproof and dustproof rating, and integrated 2.4G & 5G Wi-Fi connectivity (available in A10W/A10W-E models), ensuring top-notch communication quality even in challenging environments.

What sets the Fanvil A10 Dubai apart is its versatility in installation options. It supports both wall mountable configurations (A10/A10W) and standard 86 box embedded installations (A10-E/A10W-E), making it suitable for a variety of indoor application scenarios.The integration of these features not only elevates the communication experience but also enhances security and convenience in indoor settings. Whether it’s for residential complexes, office spaces, or commercial establishments, the Fanvil A10 Dubai SIP mini intercoms stand as reliable solutions tailored to modern communication needs.

Fanvil A10 Highlights

• Features 2 SIP accounts and 3 detachable function buttons
• Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
• IP54 waterproof and dustproof
• Support HD audio with codec G.722 and Opus
• Built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1 short circuit input/output interface
• Support PoE power supply
• Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Network Time Synchronization
• Built-in Wi-Fi (A10W/A10W-E)
  • 4G, 802.11 b/g/n
  • 5G, 11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : 711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : 722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• Wi-Fi : 4G&5G (A10W/A10W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• A10 Series : 3 DSS button；
• Status indicator light :  Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 94W~1.98W (A10/A10-E)
  • 42W~2.35W (A10W/A10W-E)
• Power Consumption (PoE)：
  • 48W~2.37W (A10/A10-E)
  • 99W~3.05W (A10W/A10W-E)
• Housing material : ABS
• Installation : Indoor installation
  • Standard 86 Box Embedded(A10-E/A10W-E)
  • Wall Mountable(A10/A10W)
• Color : Gunmetal
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• Qty/CTN：20 PCS
• W/CTN : 3.41kg
• W/CTN : 3.6kg
• Equipment Dimension :
  • 56 x 87.56 x 30mm (Wall Mountable)
  • 56 x 87.56 x 21.5mm ( 86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm(20 PCS)
