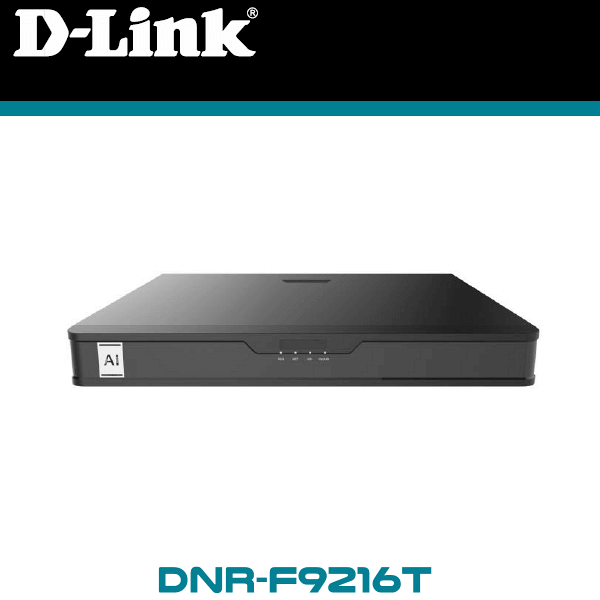

Dlink 16 Channel AI NVR Dubai

This Dlink 16 Channel AI Network Video Recorder Support with AI support provides you the ultimate solution for the terminal video screening. Dlink 16 Channel AI Network Video Recorder will support Support of 4-ch face recognition with face capture camera and face recognition with a non-face-capture camera and can Up to 16 face libraries, the total capacity of 50000 face images.

Add to quote

Ask for Quote & Get Low Price

Description

Dlink 16 Channel AI Network Video Recorder Dubai

This Dlink 16 Channel AI Network Video Recorder Support Ultra H.265/H.265/H.264 video formats and 16-channel input also having the Support of 4-ch face recognition with face capture camera. This Dlink 16 Channel AI Network Video Recorder have1-ch face recognition with a non-face-capture camera
and can Up to 16 face libraries, the total capacity of 50000 face images. This Dlink 16 Channel AI Network Video Recorder will be possible to integrate Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T.The HDMI and VGA independent real outputs provided offered by the Up to 12 Megapixels resolution recording with 2 SATA HDDs, Up to 10TB for each HDD. The ANR technology enhances the storage reliability when the network is disconnected and Supports cloud upgrade for This Dlink 16 Channel AI Network Video Recorder.

Dlink DNR-F9216T 16 Channel AI NVR Key Features

Support Ultra H.265/H.265/H.264 video formats
16-channel input
Support 4-ch face recognition with face capture camera
Support 1-ch face recognition with non-face-capture camera
Up to 16 face libraries, total capacity of 50000 face images
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
HDMI and VGA independent outputs provided
Up to 12 Megapixels resolution recording
2 SATA HDDs, Up to 10TB for each HDD
ANR technology to enhance storage reliability when the network is disconnected
Support cloud upgrade

Dlink DNR-F9216T 16 Channel AI NVR Specifications.

Video/Audio Input

IP Video Input:16-ch
Two-way Audio Input:1-ch, RCA

Network

Incoming Bandwidth: 160Mbps
Outgoing Bandwidth: 320Mbps
Remote Users: 128
Protocols: P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output
HDMI/VGA Output: VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz and HDMI: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output: 1-ch, RCA
Synchronous Playback: 16-ch
Corridor Mode Screen: 3/4/5/7/9/10/12/16

Decoding

Decoding format: Ultra 265, H.265, H.264
Live view/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability: 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1

Hard Disk

SATA: 2 SATA interfaces
Capacity: up to 10TB for each HDD Smart
VCA Detection: Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search: Face search, Behavior search
Statistical Analysis: People counting
Face recognition, with face capture camera: 4-ch
Face recognition, with normal camera: 1-ch
Face library capacity: total capacity of 50000 Up to 16 face libraries

External Interface

Network Interface :2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface: 1 x RS485
USB Interface Rear panel: 1 x USB3.0, 1 x USB2.0
Alarm In : 8-ch
Alarm Out : 2-ch

General

Power Supply: 12V DC and Power Consumption: ≤ 7.5 W (without HDD)
Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (noncondensing)
Dimensions (W×D×H) : 380mm ×315mm× 53mm (14.9″ × 12.3″× 2.1″)
Weight (without HDD) : ≤ 2Kg (4.41lb)
