Description

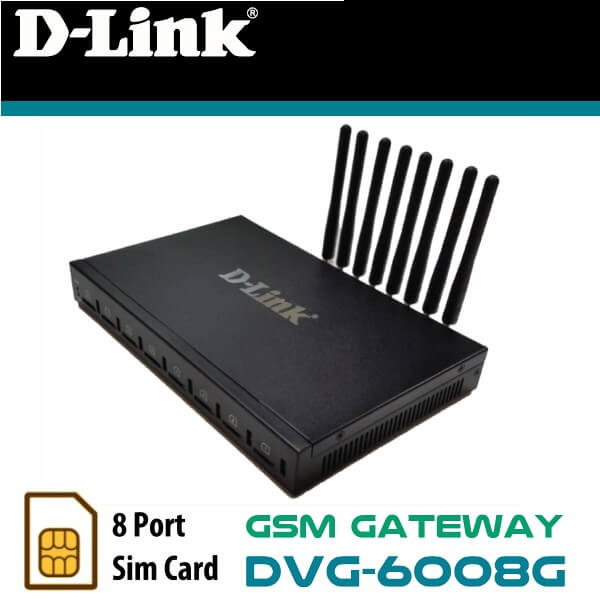

D-LINK DVG-6008G GSM Gateway Dubai

You can easily make up to 8 concurrent calls using the highly efficient D-Link DVG-6008G GSM Gateway Dubai which boasts of a reliable remote sim card management. The Cost friendly Gateway is SIPV2.0 based, therefore working perfectly with IP PBX platforms such as  Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, and 3CX. It uses G.711A/U law, G.723.1, G.729A/B together with G.168 Echo Cancelation technique to deliver crystal clear audio. Furthermore, the powerful D-Link DVG-6008G GSM Gateway Dubai is firmware upgradeable, allowing you to update to newer versions of the existing operating system so as to fix any present bugs as well as prevent your system from any vulnerabilities that may lead to loss of important data and files.

D-LINK DVG-6008G GSM Gateway Features

REMOTE SIM CARD MANAGEMENT

The D-Link DVG-6008G GSM Gateway Dubai eliminates the possibilities of losing your sim cards which can occur when removing them in order to switch them. SIM cards can be accessed remotely over the Internet and can even be switched between mobile devices without the need to dispatch another SIM card.

UP TO 8 CONCURRENT CALLS

The D-Link DVG-6008G GSM Gateway Dubai is equipped with 8 sim card slots(GSM/CDMA channels) to allow the user to enjoy making a maximum of up to 8 concurrent calls. Concurrent calls indicate the number of simultaneous calls that the Gateway can handle at once. This helps you in saving time thus boosting productivity in your office.

DUAL LANGUAGE USER INTERFACE

The D-Link DVG-6008G GSM Gateway Dubai supports the use of both Chinese and English languages, thus giving a user options from which to choose a preferred language.

MODULAR & SCALABLE

The high performing Gateway features SIP/IAX trunks  and supports a modular analog interface to enable you to add to your already existing analog telephony infrastructure. You therefore do not require any technical expertise in order to set up the Premium D-Link DVG-6008G GSM Gateway Dubai which offers an easy user experience, courtesy of its embedded web – based configuration.

COST SAVING

The D-Link DVG-6008G GSM Gateway Dubai enables you to enjoy seamless communications at an extremely affordable price. The incorporated Internet Phone Service which integrates well with known ITSPs offers an easy connection for faster calls and browsing  in your workstation.

SIMPLE INTEGRATION

The  D-Link DVG-6008G GSM Gateway Dubai incorporates a simple web based configuration, Telnet configuration and a firmware upgrade by TFTP to accord the user a very easy installation and operation experience. It is easy to deploy, resulting in a neater and cleaner workstation.

CRYSTAL CLEAR AUDIO

THE D-LINK DVG-6008G GSM Gateway Dubai integrates a number of audio codecs including G.711A/U law, G.723.1, G.729A/B with other modern techniques such as the G.168 Echo Cancelation , Silence Suppression & Detection, Comfort Noise Generation (CNG), Voice Activity Detection (VAD) and Adaptive (Dynamic) Jitter Buffer so as to deliver high quality sounds with no distractions. This enables you to hear clearly and be heard during calls without straining.

SIPV2.0 COMPLIANCE

D-Link DVG-6008G GSM Gateway Dubai meets the required SIP standards and is therefore based on SIP version 2.0(RFC3261). This feature enables you to easily plug and play your phone without the need for any configurations. Initialization starts automatically and immediately  the phone is connected to the network. The D-Link DVG-6008G GSM Gateway Dubai can be configured via a user interface, to enable it accept SIP NOTIFY messages from SIP proxy servers, thus giving it an ability to act as a web server. Due to SIPV2.0 compliance, the D-Link DVG-6008G GSM Gateway Dubai works perfectly with major leading professional platforms such as Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, and 3CX.

FIRMWARE UPGRADEABLE

Firmware upgrade enables you to enjoy newer versions  of the Gateway’s existing operating system and as a result, achieve its optimal performance.Upgrading your firmware fixes any existing bugs and protects you from vulnerabilities such as risks of malicious cyber attacks and any unauthorized access by unknown users, devices and applications. Updating your D-Link DVG-6008G GSM Gateway’s firmware has never been easier. Simply type your gateway’s IP address into your web browser and enter your login information. Then locate the Firmware or Update section and download the latest firmware update on your Gateway manufacturer’s website. Finally, upload the update and reboot the Gateway.

ADVANCED CALL FEATURES

The D-Link DVG-6008G GSM Gateway Dubai boasts of a number of modern call features including ;

Call Forwarding : this is a telephony feature of some telephone switching systems which redirects a telephone call to another destination, which may be, for example, a mobile or another telephone number where the desired called party is available.

Call Waiting : this feature enables a user to accept an incoming call by putting the current active call on hold.

Caller ID Restriction for Outgoing Call :  a user can hide their caller ID when making a call so that their number and details will not be displayed on the call recipient’s phone. This guarantees the user maximum privacy during communication.

COMPATIBILITY

The versatile D-Link DVG-6008G GSM Gateway Dubai is SIP-based and has therefore been configured to allow for maximum compatibility with various IP PBX and softswitch brands such as Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX.

D-LINK DVG-6008G GSM Gateway Specifications

• MOBILE SPECIFICATIONS
  • Frequency Range: GSM 850/900/1800/1900MHz
  • CDMA: 800Mhz
  • WCDMA:2100MHz(Optional)
  • SMS/SMSC/USSD
  • SMS Coding/Decoding: ASCII/UCS2
  • Open API Protocol
  • PIN Code Management
  • Call Duration Limitation for SIM
  • Card/Single Call
  • Polarity Reversal （GSM)
  • Answer Delay (CDMA)
  • Carrier selection
  • Caller ID Restriction for Outgoing
  • Call
  • BCCH Management
  • Call Waiting
  • Call Forwarding
• SIP CHARACTERS
  • SIP V2.0 RFC3261
  • SDP RFC2327
  • Session Timer RFC4028
  • RTP/RTCP RFC3551
  • SIP Registration
  • SIP Trunk ( Peer Mode)
  • SIP Trunk Group
  • Ringback (Immediately, Alerting)
  • Configurable SIP Release Code
  • DNS SRV/A Query
  • Outbound Proxy
  • DTMF Mode: Signal/RFC2833
• NETWORK FEATURES
  • IP v4, UDP/TCP, PPPoE, DHCP, FTP/TFTP ARP, RARP, NTP
  • VPN PPTP
  • Encryption: RC4,MD5
  • (Coming Soon)
  • IP v6 (Coming Soon)
  • HTTP, Telnet
• VOICE PROCESSING
  • 711A/U law, G.723.1, G.729A/B
  • Silence Suppression & Detection
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)
  • Echo Cancellation (G.168)
  • Adaptive (Dynamic) Jitter Buffer
  • Call Progress Tone Generation
  • Programmable Gain Control
• MAINTAIN & UPGRADE
  • Web Based Configuration
  • Telnet Configuration
  • Configure Backup/Restore
  • Support English and Chinese language
  • Firmware upgrade by HTTP/TFTP
  • Web & Telnet Login Password Modify
  • Factory Reset
  • CDR (10000 Lines CDRs Storage Locally)
  • Output CDR via Syslog
  • Syslog
  • Ping and Tracert Test
  • Traffic statistics: TCP,UDP,RTP
  • VoIP Call Statistics
  • PSTN Call statistics: ASR,ACD,PDD
  • Voice Dialogist with Loopback
  • IVR Customization
  • System Logs
• PHYSICAL PROPERTIES
  • Power Supply :
    • Input:100-240V,50-60Hz
    • Output: DC12V 4.0A
  • Power Consumption: DVG-6004G: 25w
  • Temperature:
    • (Operation): 0 °C~ 45 °C (Storage)
    • :-20 °C~80 °C
    • Operation Humidity: 10%-90%
  • Dimension(W/D/H): 250*156*32.5mm•
  • Weight: 1.069kg
  • Package Weight: 2.05kg

PACKAGE CONTENTS

• D-Link DVG-6008G GSM Gateway Dubai
• RJ-45 Network cable
• Antenna
• User’s Manual CD
