D-Link DPH200SE Dubai

DPH-200SE combines contemporary appearance, excellent voice quality , along with matching integrated communication platforms, making it a new generation of hotel intelligent terminal equipment.

Add to quote

Ask for Quote & Get Low Price

Description

D-Link DPH200SE Dubai

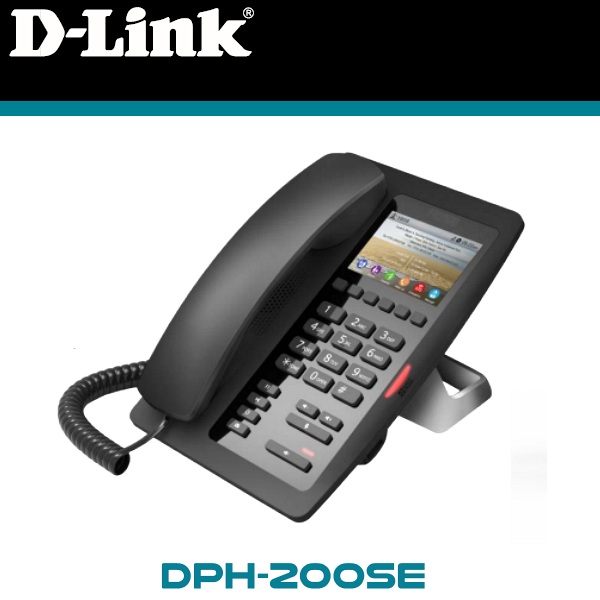

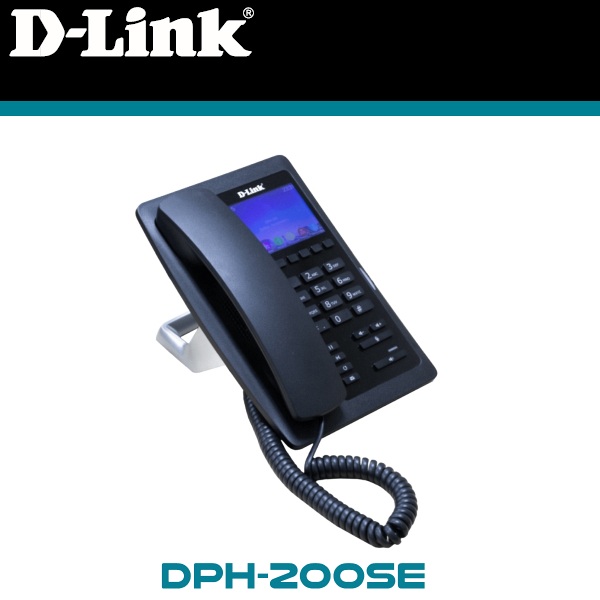

The D-Link DPH200SE Dubai is a modern IP Phone which has mainly been designed for use by hotels. It is an elegant, stylish IP Phone which has been primed to achieve the focal point of any room. DPH-200SE combines contemporary appearance, excellent voice quality , along with matching integrated communication platforms, making it a new generation of hotel intelligent terminal equipment. It comes with a 1 10/100Base-TX WAN port with PoE and 1 10/100Base-TX LAN port. An integrated Power over Ethernet(PoE) port allows for easy connection with available networks, making it suitable for extended network uses. The PoE port also allows you to power your DPH-200SE Dubai through a single cable, simplifying deployment and eliminating the need for a nearby power outlet.

The D-Link DPH-200SE Ip phone Dubai allows its users to directly connect to PC instead of LAN directly. A colour LCD display on the panel provides direct visual interface with user. User can use keypad/LCD or Web browser to configure this phone. DPH-200SE supports one SIP account, G.722 codec, SRTP and many other useful functions including call transfer, hold and redial.

D-Link DPH200SE features

Hardware

SDRAM: 16MB
FLASH: 8MB

Network interface

WAN Port 10/100Base-TX with PoE support for LAN
LAN Port 10/100 Base-TX for PC
Handset RJ9
USB port for mobile devices charge

LCD

Color LCD display 3.5 inch
Resolution: 480×320

Keypad Features

6 Soft keys for doing more functions
Hold
Transfer
Redial
MWI
Speaker
12 numeric keys with star & pound key
Mute
Vol -/Vol +

Power Plug

DC power plug

Software

VxWorks OS

Voice Codec

G.711a/u
G.729A/B
G.723.1 high/low
G.722
G.726-32

Advance Voice Quality Feature

Support HD voice
DTMF: In-band, RFC 2833 and SIP INFO
Acoustic Echo Cancellation: hands-free can support 96ms
Voice Active Detection (VAD)
Comfort Noise Generation (CNG)
Silence Suppression
Packet Lost Concealment (PLC)
Jitter Buffer

Signal, Media & Network Protocols

SIP 2.0 RFC 3261
SIP support 1 SIP server, and backup SIP proxy servers
SIP UDP/TCP/TLS support
SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/IP Call

Supplementary Call Feature

Call Transfer (Blind, Attend and Early Attended Transfer)
Call Hold
Call Waiting
Redial
Call completion
MWI
Flexible dial plan
Barring function for outgoing calls
Do Not Disturb
Auto Answer
Anonymous Call/Rejection
Dial without registration
Call logs with missed/incoming/outgoing calls
DTMF hidden
Action URL/Active URI
Multicast
Web dial
Emergency call

Security

Bridge mode
Static IP, DHCP, PPPoE
802.1X
VPN: L2TP (Basic Unencrypted)
OpenVPN (Attention! This function is not available with the devices that shipped to the territory of the Customs Union states.)
VLAN
QoS

User interface/network management
