Description

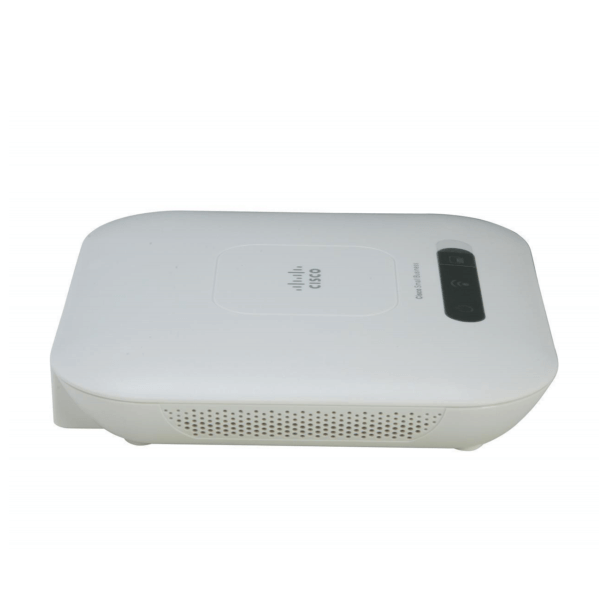

Cisco WAP321 Access Point Dubai
The Cisco WAP321 Dubai Wireless-N Selectable-Band Access Point with Single Point Setup is a sleek, affordable, and easy-to-deploy device that delivers fast, highly secure wireless connectivity. It supports high-speed connections with Gigabit Ethernet LAN interface for demanding applications. The Cisco WAP321 bridges wired LANs together wirelessly, making it easier for small businesses to expand their networks.
Designed for growing organizations, the Cisco WAP321 Dubai offers the ability to smoothly scale your network by bridging wired LANs together wirelessly, to reduce cabling and installation costs. It supports multiple Service Set Identifiers (SSIDs) to enable you to segregate traffic for different departments, users, and communication devices.
For companies that need to provide secure wireless guest access, the Cisco WAP321 offers captive portal support that lets you create a wireless hotspot with visitor authentication.
The Cisco WAP321 Dubai is simple to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. A sleek, compact design with flexible mounting options enables the access point to smoothly blend into any small business environment. Power over Ethernet (PoE) support makes the device easy to install without the need for separate power plugs or expensive new wiring.
To enhance reliability and safeguard sensitive business information data, the Cisco Wi-Fi Dubai supports WiFi Protected Access (WPA2), encoding all your wireless transmissions with powerful encryption. 802.1X RADIUS authentication helps keep unauthorized users out. Single Point Setup is a controllerless multi-access point deployment technology that allows you to deploy and manage multiple access points in a simple and cost-effective way across your premises.
Single Point Setup provides a unique centralized method to administer and control wireless services across multiple devices. Via one access point on the LAN, you have a single view of the whole WLAN to replicate configuration, security, and management across all access points.
With the Cisco WAP321 Dubai, you can build on your existing network to deliver high-performance wireless access with the scalability you need as your business grows and evolves.
Features
- Cisco WAP321 Dubai is equipped with a highly secure, high-speed 802.11n wireless networking which delivers enhanced throughput and extended range for bandwidth-intensive applications.
- Wizard-based setup and configuration enables fast, simple deployment.
- Single Point Setup controllerless multi-access point deployment and management technology makes configuration simple.
- Gigabit Ethernet LAN interface provides high-speed connectivity for faster downloads and demanding applications.
- Selectable-band wireless access lets you switch bands to minimize interference from other office devices and improve performance.
- Cisco WAP321 Dubai delivers robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection, helps protect sensitive business information.
- Cisco Wi-Fi Dubai has built-in support for PoE enables easy installation without the expense of additional wiring.
- Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
- Cisco WAP321 Dubai has elegant, compact design with internal antennas and versatile mounting kit enables installation on a ceiling, wall, or desktop.
- Intelligent QoS prioritizes network traffic to keep critical network applications running at top performance.
- Power-saving sleep mode and port control features help maximize energy efficiency.
- Highly secure guest access enables safe wireless connectivity for visitors.
- Cisco WAP321 Dubai has support for IPv6 which lets you deploy future networking applications and operating systems without costly upgrades.
Technical Specs
|
Specifications |
Description |
||
|
Standards |
IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
||
|

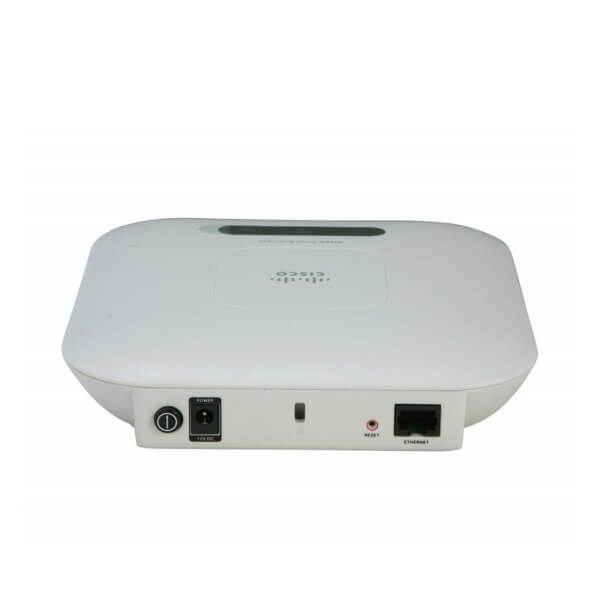

Ports |
Ethernet, Power |
||
|
Switch |
Power button (on/off) |
||
|
Buttons |
Reset |
||
|
Cabling type |
Category 5e or better |
||
|
LEDs |
Power, Wireless, LAN |
||
|
Operating system |
Linux |
||
|
Physical Interfaces |
|||
|
Ports |
Gigabit Ethernet, 12V DC power with support for 802.3af PoE |
||
|
Power supply |
Not included with access point, but supports external power 12V DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af PoE |
||
|
Buttons |
Power (on/off) push button; Reset button |
||
|
Lock slot |
Slot for Kensington lock |
||
|
LED |
Power, Wireless, Ethernet |
||
|
Physical Specifications |
|||
|
Physical dimensions (W x D x H) |
6.66 x 6.67 x 1.38 in. (169.08 x 169.42 x 35 mm) |
||
|
Weight |
0.606 lb or 275g |
||
|
PoE |
|||
|
PoE |
802.3af |
||
|
Peak PoE power |
10.6W |
||
|
Network Capabilities |
|||
|
Network protocols |
IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), RADIUS, syslog, HTTP/HTTPS, Simple Network Management Protocol (SNMP) |
||
|
VLAN support |
Yes |
||
|
Number of VLANs |
1 management VLAN plus 8 VLANs for SSID |
||
|
Multiple SSIDs |
8 |
||
|
802.1X supplicant |
Yes |
||
|
802.11d |
No |
||
|
SSID to VLAN mapping |
Yes |
||
|
Auto channel selection |
Yes |
||
|
Spanning tree |
Yes |
||
|
Load balancing |
Yes |
||
|
IPv6 |
|
||
|
Layer 2 |
802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN |
||
|
Security |
|||
|
WEP/WPA/WPA2 |
Yes, including Enterprise authentication |
||
|
Access control |
Yes, management access control list (ACL) plus MAC ACL |
||
|
Secure management |
HTTPS |
||
|
Wi-Fi Protected Setup (WPS) |
Yes (soft WPS, no hardware push button) |
||
|
SSID broadcast |
Yes |
||
|
Rogue access point detection |
Yes |
||
|
Mounting and Physical Security |
|||
|
Multiple mounting options |
Desktop installation; mounting bracket included for easy ceiling or wall mounting |
||
|
Physical security lock |
Kensington lock slot |
||
|
Quality of Service |
|||
|
Quality of service (QoS) |
Wi-Fi Multimedia Traffic Specification (WMM TSPEC) |
||
|
Performance |
|||
|
Wireless throughput |
Data rate =300 Mbps; actual client throughput will vary. |
||
|
Recommended user support |
Up to 32 connective users, 20 active users |
||
|
Configuration |
|||
|
Web user interface |
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS) |
||
|
Multi-Access Point Management |
|||
|
Single Point Setup |
Yes |
||
|
Maximum access points per cluster |
8 |
||
|
Active clients per cluster |
80 |
||
|
Management |
|||
|
Management protocols |
Web browser, SNMP v3, Bonjour |
||
|
Remote management |
Yes |
||
|
Event logging |
Local, remote syslog, email alerts |
||
|
Network diagnostics |
Logging and packet capture |
||
|
Web firmware upgrade |
Firmware upgradable through web browser, imported/exported configuration file |
||
|
Dynamic Host Configuration Protocol (DHCP) |
DHCP client |
||
|
IPv6 host |
Yes |
||
|
HTTP redirect |
Yes, and captive portal |
||
|
Wireless |
|||
|
Frequency |
Selectable-band 2.4 GHz or 5 GHz (not concurrent) |
||
|
Radio and modulation type |
Single radio, orthogonal frequency division multiplexing (OFDM) |
||
|
WLAN |
802.11n |
||
|
Operating channels |
1 to 13 (depending on country) |
||
|
Wireless isolation |
Wireless isolation between clients |
||
|
External antennas |
None |
||
|
Internal antennas |
Internal fixed PIFA antenna |
||
|
Antenna gain in dBi |
2 dBi each antenna |
||
|
Transmitted output power |
|
||
|
Receiver sensitivity |
|
||
|
Wireless Distribution System (WDS) |
Yes |
||
|
Roaming |
Yes |
||
|
Fast roaming |
802.11i pre-authentication |
||
|
Active WLAN clients |
Same as number of users: 32 max connected users, 20 active users recommended |
||
|
Multiple SSIDs |
8 |
||
|
Wireless VLAN map |
Yes |
||
|
WLAN security |
Yes |
||
|
Wi-Fi Multimedia (WMM) |
Yes, with automatic power save, and Voice profile |
||
|
Operating Modes |
|||
|
Access point |
Access Point mode, WDS bridging, Workgroup Bridge mode |
||
|
Environmental |
|||
|
Power |
12V 1A DC input, and IEEE 802.3af compliant PoE |
||
|
Certifications |
FCC class B, CE, IC, Wi-Fi |
||
|
Operating temperature |
0° to 40°C (32° to 104°F) |
||
|
Storage temperature |
–20° to 70°C (–4° to 158°F) |
||
|
Operating humidity |
10% to 85% noncondensing |
||
|
Storage humidity |
5% to 90% noncondensing |
||
|
Mean time between failures (MTBF) |
492281 hours |
||
|
