Description

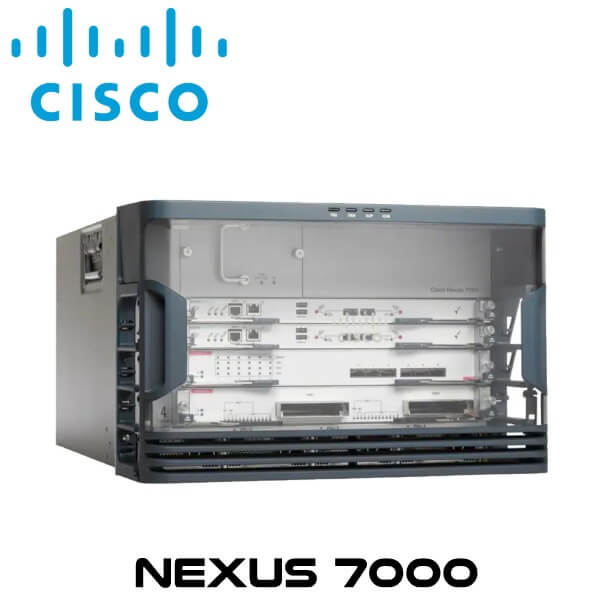

Cisco Nexus7000-4Slot Chassis Network Switch Dubai
Cisco Nexus7000-4Slot Dubai is a modular chassis that comes equipped with two I/O module slots that support up to 96 x 1 and 10 Gigabit Ethernet ports, 12 x 40 Gigabit Ethernet ports and 4 x 100 Gigabit Ethernet ports. It is designed to meet the needs of small to medium-size data centers, high-speed core deployments, access- and aggregation-layer deployments, co-locations as well as smaller operation zones.
The Cisco Nexus 7000 4-Slot Dubai chassis also has two dedicated supervisor slots to provide full redundancy and high availability. The 4-slot chassis does not require fabric modules. The local I/O module fabrics are connected back to back to form a two-stage crossbar that interconnects the I/O modules and the supervisor engines. The backplane capacity is determined by the installed I/O modules.
The Cisco Nexus 7000 4-Slot Switch chassis has two supervisor module slots, two I/O module slots, and purpose-built integrated cable management. The 4-slot chassis does not have fabric modules, and the backplane capacity is determined by the I/O modules. Power supplies and fan tray are accessible from the front.
Quick Features:
- Fully redundant system architecture with dual supervisors, redundant power supplies, and fans
- Lossless, non disruptive In-Service Software Upgrades (ISSUs) for zero service downtime
- Graceful system operations to minimize the effect of upgrades and other maintenance
- High AvailabilityThe Cisco Nexus 7000 4-Slot Dubai Switch provides:
- Fully redundant system architecture with dual supervisors, redundant power supplies, and fans
- Lossless, non disruptive In-Service Software Upgrades (ISSUs) for zero service downtime
- Graceful system operations to minimize the effect of upgrades and other maintenance
Scalability
Protect your infrastructure investments using the Cisco Nexus7000-4Slot Dubai with the following features:
- 1.92 Tbps of switching capacity to scale for future growth demands
- Highly scalable modular NX-OS features such as Fabric Path and Fabric Extender (FEX) technology
Transport Flexibility
This switch offers transport flexibility with:
- Support for 1, 10, 40, and 100 Gigabit Ethernet interfaces
- Optics options from short-range to long-range DWDM
- Fibre Channel over Ethernet (FCoE) for LAN and SAN consolidation
Technical Details
| General Information | |
|---|---|
| Category | Network switches |
| Description | Cisco Nexus 7000 Series 4-Slot Chassis – Switch – rack-mountable |
| Manufacturer | Cisco Systems |
| MSRP | $18,019.04 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 62.2 cm |
| Dimensions & Weight / Height | 30.9 cm |
| Dimensions & Weight / Weight | 20 kg |
| Dimensions & Weight / Width | 44.1 cm |
| Header / Brand | Cisco |
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 62.2 cm |
| Height | 30.9 cm |
| Weight | 20 kg |
| Width | 44.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Humidity Range Storage | 5 – 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots | 4 (total) / 4 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| General | |
| Device Type | Switch |
| Enclosure Type | Rack-mountable 7U |
| Features | Modular design |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – advance parts replacement – 1 year – response time: 10 days |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 |
| Power | |
| Max Supported Qty | 2 |
| Power Device | Internal power supply (not installed) – hot-plug |
