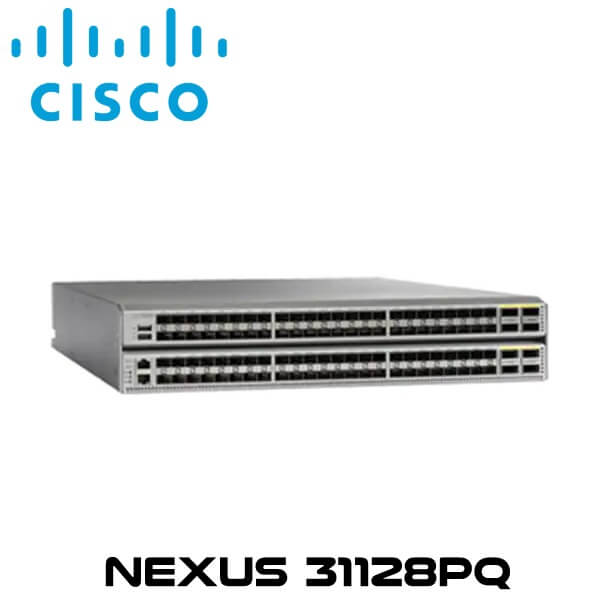

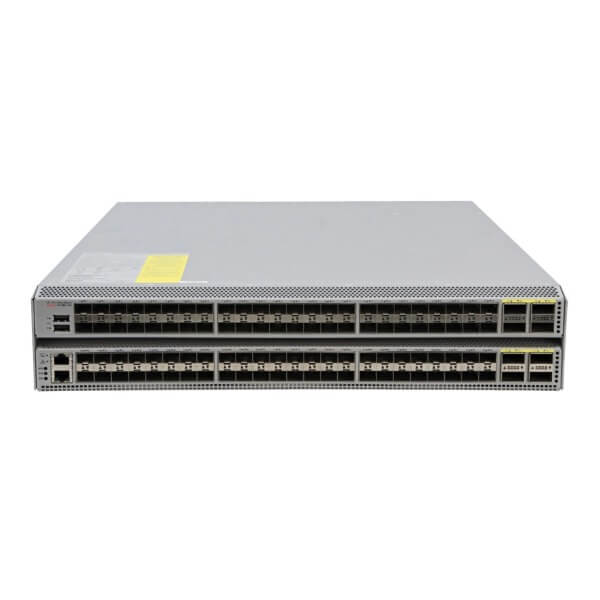

Cisco Nexus31128PQ Network Switch Dubai
The Cisco Nexus31128PQ Dubai Switch, part of the Unified Fabric family, is a compact, 2-rack-unit (2RU) switch for top-of-rack data center deployments. The Cisco Nexus31128PQ Dubai is a dense, high-performance Layer 2 and 3, 10- and 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Nexus 3100 switches are the second-generation Cisco Nexus 3000 series switches and offer improved port density, scalability, and features compared to the first-generation switches.
The Cisco Nexus31128PQ Dubai comes in a compact two-rack-unit (2RU) form factor and runs the industry-leading Cisco® NX-OS Software operating system, providing customers comprehensive features and functions that are widely deployed. It supports both forward and reverse (port side exhaust and port side intake) airflow schemes with AC and DC power inputs. The Cisco Nexus 31128PQ is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 access or leaf switch.
Features :
Flexibility and High Performance
- Provides Layers 2 and 3 switching of up to 2.4 Tbps and more than 1,680 mpps
- Supports mobility and tenant isolation with VXLAN (with a software upgrade)
- Optimizes latency with PHY-less design on all ports
- Supports 1,10,40 Gbps for maximum physical layer flexibility
- Offers 96 1, 10 Gigabit Ethernet (GE) plus eight 40 GE ports in a 2RU
Simplified Operations
The modular and resilient Cisco NX-OS Software is purpose-built with exceptional support for Layer 3 unicast and multicast routing protocols. Manageability features promote ease of use and include :
- PowerOn Auto Provisioning for touchless bootup and configuration
- Cisco Embedded Event Manager (EEM) and Python scripting
- Advanced software-defined networking (SDN) capabilities, including support for OpenFlow
- Integration with Cisco Prime Data Center Network Manager (DCNM) and XML management tools
Physical specifications :
- Provides 96 small form factor pluggable plus [SFP+] and 8 Quad SFP+ [QSFP+] transceivers
- Dual redundant power supplies
- Redundant (3 plus 1) and hot-swappable fans
- Low power consumption of 2 watts per port
Performance specifications :
- Line-rate traffic throughput (both Layers 2 and 3) on all ports
- Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
