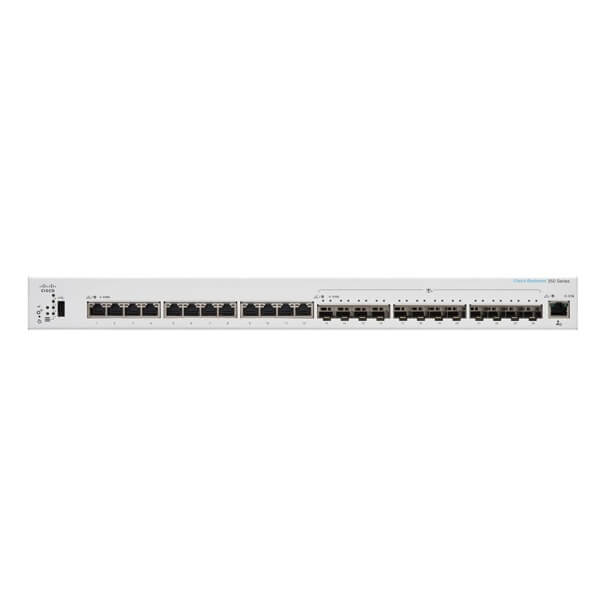

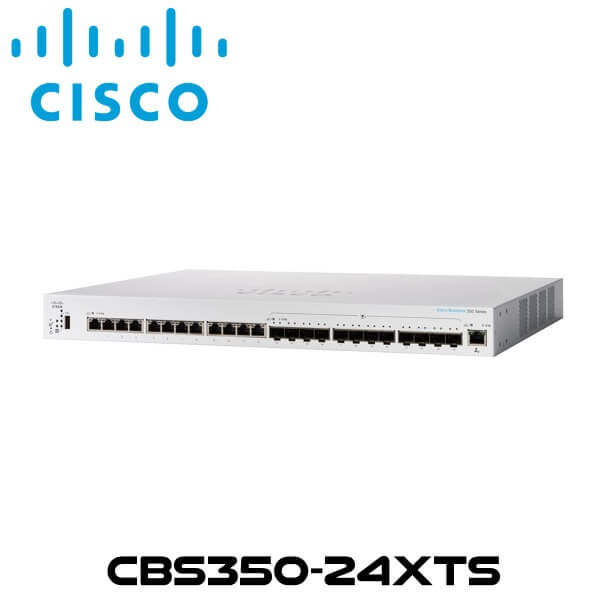

Cisco CBS350-24XTS Network Switch Dubai
The Cisco CBS350-24XTS Dubai managed rackmount switch features twelve 10G RJ45 Ethernet ports alongside twelve dedicated 10G SFP+ fiber ports that work with compatible wired devices such as computers, network attached storage, and more. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight port groups for multi-Gig connections to compatible devices. Its 480 Gb/s switching capacity and 240 Mbps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-24XTS Dubai and its connected devices. The three fan design helps to maintain optimal temperatures while the switch to operates quietly in the background.
Features:
Performance
The Cisco CBS350-24XTS Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 480 Gb/s switching capacity and 240 Mbps forwarding rate.
Extensive Security
- Support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
- Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
- The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.
IPv6 Support
The Cisco CBS350-24XTS Dubai switch allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.
Layer 3 Static Routing
Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.
True Stacking
Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.
Compact Design
With a sleek and compact 1 RU design, the Cisco CBS350-24XTS Dubai can fit into most wiring closets and other installations within retail stores, offices, and other businesses.
Energy Efficient
Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.
Technical Specs
| Interfaces | |
| Ports |
|
| Protocols | |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols |
|
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Multicast Groups | 2000 |
| VLAN IDs | 4094 |
| Security | |
| Security Features |
|
| Access Control List | 1024 |
| IP Interfaces | 128 |
| Static Routes | 990 |
| SNMP Support | 1, 2c, 3 |
| Standards | |
| RFC | RFC 4330 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, 802.3x, 802.3z |
| Performance | |
| Forwarding Rate | 240 Mpps |
| Switching Bandwidth | 480 Gb/s |
| Priority Queues | 8 |
| Packet Buffer | 3 MB |
| Computer | |
| Flash Memory | 256 MB |
| Processor | 800 MHz ARM |
| Memory | 512 MB |
| Electrical | |
| Power Draw | 80.2 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Storage Humidity | 10 to 90% |
| Noise Level | 43.3 dB |
| General | |
| Cooling System | Fan |
| Mean Time Between Failures (MTBF) | 1,372,246 Hours |
| Indicator Lights | Link/Activity, Speed, System |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 13.8 x 1.7″ / 440 x 350 x 44 mm |
| Weight | 10.67Â lb / 4.84Â kg |
