Description

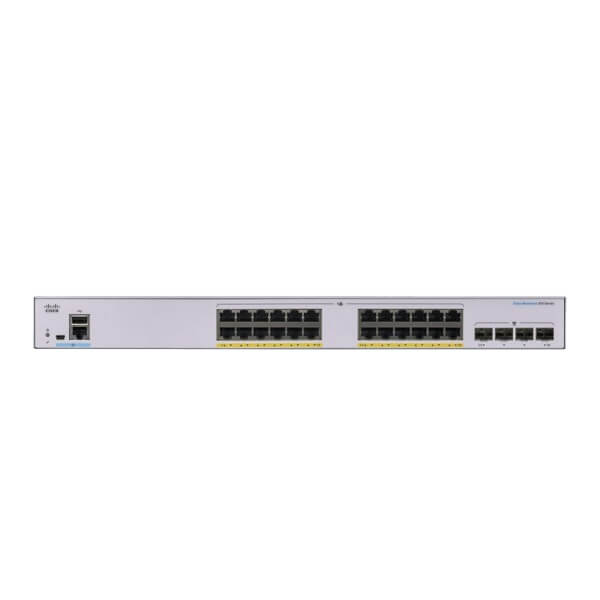

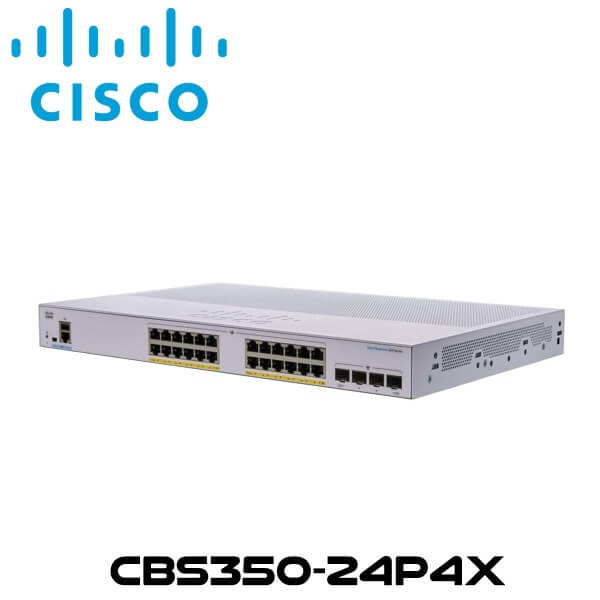

Cisco CBS350-24P4X Network Switch Dubai
The Cisco CBS350-24P4X Dubai is managed rackmount switch features 24 PoE+ compliant Gigabit Ethernet ports with a 195W budget to operate compatible devices. There are also four 10 Gigabit SFP+ ports available for high-speed fiber connections. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight groups of 16 ports for multi-Gig connections to compatible devices. Its 128 Gb/s switching capacity and 95.23 Mbps forwarding rate help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-24P4X Dubai and its connected devices. The fanless design helps to reduce power consumption while allowing the switch to operate silently in the background.
Features:
Performance
The Cisco CBS350-24P4X Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 128 Gb/s switching capacity and 95.23 Mbps forwarding rate.
Power over Ethernet
The 24 PoE+ ports support up to 30W of power each, with a total budget of 195W to operate advanced surveillance cameras, videophones, thin client devices, and more.
Extensive Security
- Support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
- Advanced defense mechanisms, such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
- The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.
IPv6 Support
The Cisco CBS350-24P4X Dubai switch supports allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.
Layer 3 Static Routing
Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.
True Stacking
Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.
Compact Design
With a sleek and compact 1 RU design, the Cisco CBS350-24P4X Dubai can fit into wiring closets and other installations within retail stores, offices, and other businesses.
Energy Efficient
Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.
Technical Specs
| Interfaces | |
| Ports |
|
| Protocols | |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols |
|
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Multicast Groups | 2000 |
| VLAN IDs | 4094 |
| Security | |
| Security Features |
|
| Access Control List | 1024 |
| IP Interfaces | 128 |
| Static Routes | 990 |
| SNMP Support | 1, 2c, 3 |
| Standards | |
| RFC | RFC 4330 |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3an, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z |
| Performance | |
| Forwarding Rate | 95.23 Mpps |
| Switching Bandwidth | 128 Gb/s |
| Priority Queues | 8 |
| Packet Buffer | 1.5 MB |
| Computer | |
| Flash Memory | 256 MB |
| Processor | 800 MHz ARM |
| Memory | 512 MB |
| OS Compatibility |
|
| Electrical | |
| Power Draw | 240.4 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget | 195 W |
| PoE per Port | 30 W |
| Environmental | |
| Operating Temperature | 23 to 122°F / -5 to 50°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Storage Humidity | 10 to 90% |
| General | |
| Cooling System | Passive |
| Mean Time Between Failures (MTBF) | 698,220 Hours |
| Indicator Lights | Link/Activity, PoE, Speed, System |
| Rack Form Factor | 1 RU |
| Dimensions | 17.5 x 11.8 x 1.7″ / 445 x 299 x 44Â mm |
| Weight | 8.11Â lb / 3.68Â kg |
| Packaging Info | |
| Package Weight | 11.77 lb |
| Box Dimensions (LxWxH) | 22.6 x 17.4 x 4.3″ |
