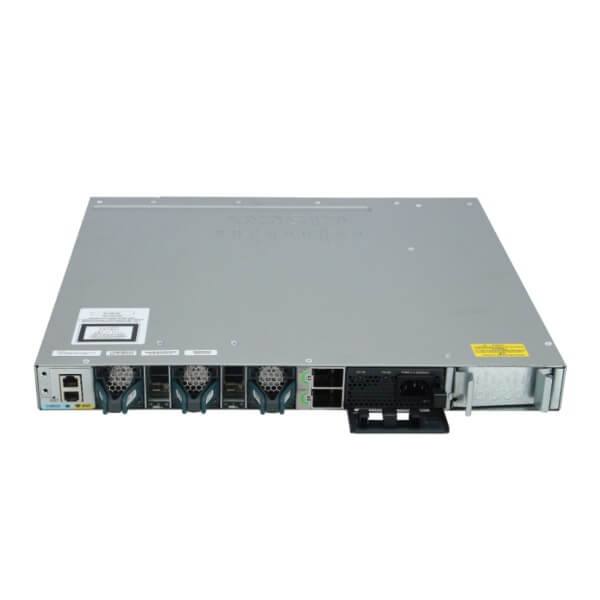

Cisco Catalyst3850-24S Network Switch Dubai
Cisco Catalyst3850-24S Dubai is the next generation enterprise-level stackable switch that is integrated with 24 SFP ports in IP base feature set. WS-C3850-24S-S supports up to 1K VLANs and delivers comprehensive layer 2 switching and limited layer 3 capabilities by offering the feasible solution for access layer or distribution layer.
The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst3850-24S Dubai supports full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies. The Cisco Catalyst3850-24S Dubai switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.
Features
- Up to 40G of wireless capacity per switch (48-port RJ45 models)
- Support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)
- 24 and 48 10/100/1000Mbps data PoE+ and Cisco UPOE models with energy-efficient Ethernet (EEE)
- 24 and 48 100Mbps/1/2.5/5/10 Gbps Cisco UPOE models with energy-efficient Ethernet (EEE)
- 12- and 24-port 1 Gigabit Ethernet SFP-based models
- 12- and 24-port 1/10 Gigabit Ethernet SFP+-based models
- 48-port 1/10 Gigabit Ethernet SFP+ model with 4 fixed 40 Gigabit Ethernet QSFP+ uplinks
- Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput
- Cisco StackPower technology provides power stacking among stack members for power redundancy
- Five optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, 4 x 10 Gigabit Ethernet , 8 x 10 Gigabit Ethernet4, or 2 x 40 Gigabit Ethernet QSFP+ports
- Cisco Catalyst3850-24S Dubai has Dual redundant, modular power supplies and three modular fans providing redundancy
- Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 rack unit (RU) form factor
- Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor
- IEEE 802.3bz (2.5/5 G/s BASE-T) to go beyond 1 Gb/s with existing Cat5e and Cat6
- IEEE 802.3ba AV Bridging (AVB) built-in to provide better AV experience for including improved time synchronization and QoS.
- Cisco Catalyst3850-24S Dubai has built-in Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF), and enhanced security features
- Single universal Cisco IOS Software image across all license levels, providing an easy upgrade path for software features
- DNA services delivered through Cisco ONE Software, providing simplified, high-value solutions with license portability and flexibility
- Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
Technical Specs
| Product Code | WS-C3850-24S-S |
| Ports | 24 x SFP ports |
| Network SFP Uplink Module Selection |
|
| Network management Interface |
|
| Available PoE Power | None |
| Switching Capacity | 92Gbps |
| Maximum stacking number | 9 |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 68.4Mpps |
| RAM | 4 G |
| Number of AP per switch/stack | 50 |
| Number of wireless clients per switch/stack | 2000 |
| Dimensions | 44.5 cm x 45 cm x 4.45 cm |
| Manufacturer Warranty | 1 year warranty |
