Description

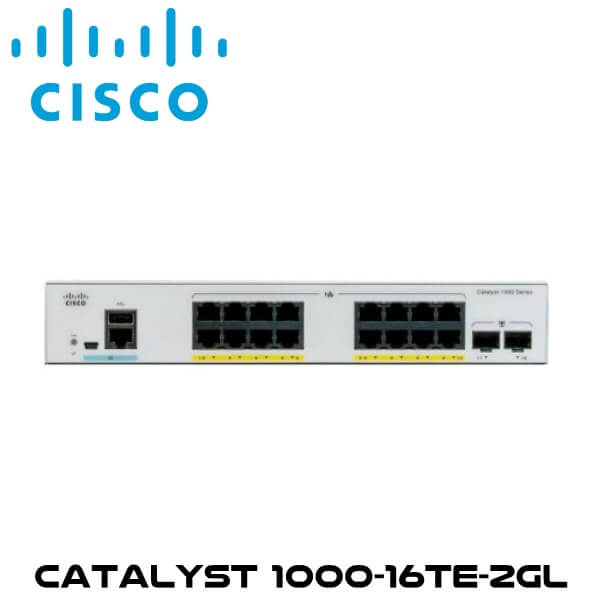

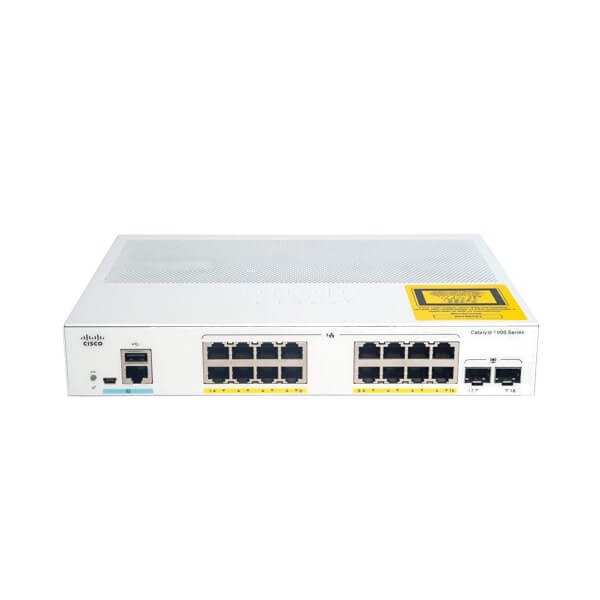

Cisco Catalyst1000-16TE2GL Network Switch Dubai
The Cisco Catalyst1000-16TE2GL Dubai is a fixed managed Gigabit Ethernet enterprise-class Layer 2 switch designed for small businesses and branch offices. It is a simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. Cisco Catalyst1000-16TE2GL switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Features
Simple
Use the intuitive Mobile App and Cisco Business Dashboard to automate the deployment, monitoring, and lifecycle management of your Cisco Business devices.
Flexible
Customizable switching, routing, and wireless solution catering to every stage of your business. Extensive portfolio addresses your technical and budget requirements.
Secure
Pervasive security helps safeguard your network and the privacy of your customers.
Cisco IOS
Experience unparalleled resiliency and performance with Cisco IOS on the Cisco Catalyst1000-16TE2GL Dubai.
Simplified management
Cisco Catalyst1000-16TE2GL Dubai switches run on classic Cisco IOS and can be configured with an intuitive on-box web UI, making management simple and easy.
Enhanced security
With Cisco Catalyst1000-16TE2GL Dubai switches’ larger-scale access-control tables and additional security features, you can segment traffic for greater security.
Improved hardware and software
Increased PoE budget, advanced software options, and larger-scale access control tables make the Cisco Catalyst1000-16TE2GL Dubai a clear improvement over preceding models.
Technical Specs
| General | |
| Device Type | Switch – 16 ports – managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 + 2 x Gigabit SFP (uplink) |
| Performance |
|
| Capacity | Unicast MAC addresses ; 15360 | IPv4 unicast direct routes ; 542 | IPv4 unicast indirect routes ; 256 | IPv6 unicast direct routes ; 414 | IPv6 unicast indirect routes ; 128 | IPv4 routes (static) ; 16 | IPv6 routes (static) ; 16 | IPv4 routes (Multicast) ; 1024 | IPv6 groups (Multicast) ; 1024 | IPv4/MAC security ACEs ; 600 | IPv6 security ACEs ; 600 | Active VLANs ; 256 | VLAN IDs ; 4094 | STP instances ; 64 | SPAN sessions ; 4 | MTU-L3 packet ; 9198 byte |
| Jumbo Frame Support | 10240 bytes |
| Routing Protocol | IGMP, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
| Processor | X ARM ; 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces |
|
| Power | |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
| Dimensions & Weight | |
| Width | 10.6 in |
| Depth | 8.3 in |
| Height | 1.7 in |
| Weight | 3.13 lbs |
| Manufacturer Warranty | |
| Service & Support |
|
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 – 90% |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 – 95% |
