Description

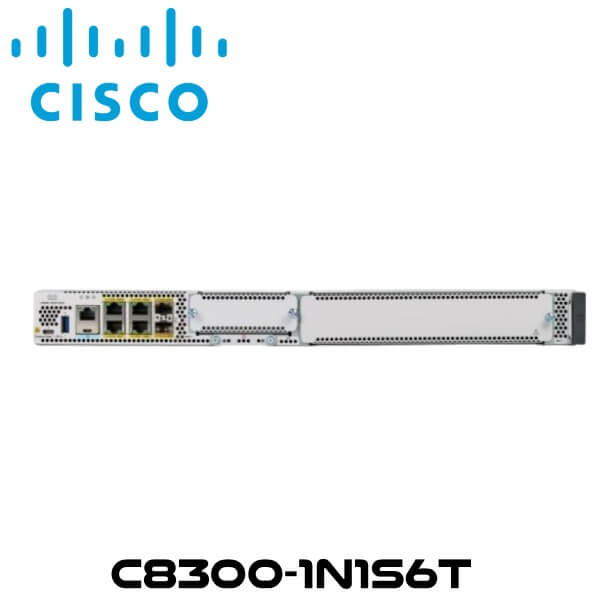

Cisco C8300-1N1S6T Dubai
=Cisco C8300-1N1S6T Dubai platforms deliver Cisco’s secure, cloud-scale SD-WAN solution for the branch. The Catalyst 8300 series is purpose-built for high performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. Cisco C8300-1N1S6T Dubai provides higher WAN port density and a redundant power supply capability. Powered by Cisco’s fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Cisco C8300-1N1S6T Dubai series edge platforms also come with an infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.
Features :
Multicore processors-
- Intel x86 CPU with 8-GB memory default (up to 32 GB memory upgrade)
- High-performance multicore processors support high-speed WAN connections.
- Dynamic core allocation architecture that can leverage data plane cores for I/O and service plane as per-user configuration.
Embedded IPsec VPN hardware acceleration-
- Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
- Increases scalability for IPSec throughput needs for medium- and large-sized branches
- SSL and crypto hardware acceleration
Integrated Gigabit Ethernet ports-
- Cisco C8300-1N1S6T Dubai provides 6 built-in Layer 3 Ethernet ports for WAN or LAN with port speeds ranging from 10Mbps, 100Mbps, 1Gbps and up to 10Gbps, depending on platform model
- All platforms have at least 2 Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) based connectivity in addition to 4 RJ-45 connections, enabling fiber or copper connectivity.
DRAM-
- Cisco C8300-1N1S6T Dubai has 8G default DRAM and can be upgraded to 16G and 32G for higher scale and performance.
M.2 storage-
- Â The Cisco C8300-1N1S6T ships with default 16G M.2 USB for SD-WAN logging and additional storage on the platform. It can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe).
Technical Details
| Part number | C8300-1N1S-6T |
| Description | C8300 1RU w/ 1G WAN (1 SM slot and 1 NIM slot, and 6 x 1-Gigabit Ethernet ports) |
| Multicore processors | Intel x86 CPU with 8 GB memory default |
| Embedded IPsec VPN hardware acceleration | Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic |
| DRAM | 8 GB |
| SD-WAN overlay tunnels scale | 6000 |
| Integrated Gigabit Ethernet ports | 6 built-in 10/100/1000/10G Ethernet ports for WAN or LAN
2 SFP Ethernet ports, 4 RJ45 ports |
| Flash memory support | 8-GB flash |
| M.2 storage | With default 16G M.2 USB for SD-WAN logging and additional storage on the platform and can be upgraded to 32G M.2 USB and 600G M.2 NVMe Storage |
