Description

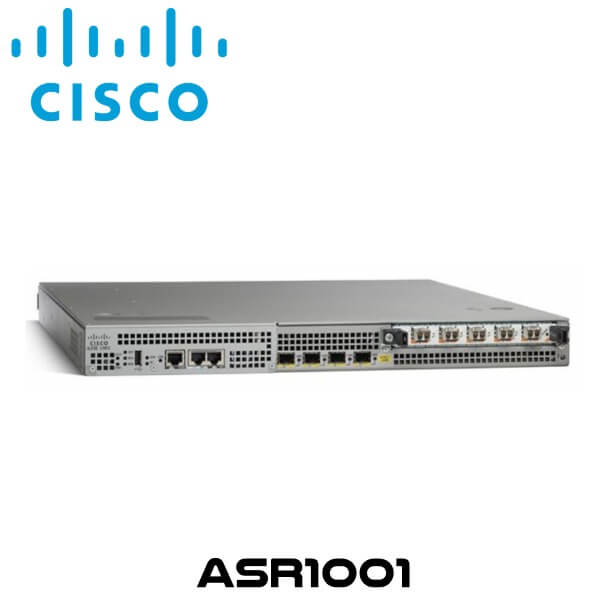

Cisco ASR1001 Aggregation Services Router Dubai
The Cisco ASR1001 Dubai is a 1-rack-unit (1RU) platform targeted towards the low to medium Enterprise and Managed Service Provider use cases. Its compact form factor has a built-in Route Processor, Embedded Services Processor (ESP) and Shared Port Adapter (SIP) Interface processor.
Running Cisco IOS XE Software, the Cisco ASR1001 Dubai shares a common operating system, feature set, and management and troubleshooting tools with the rest of Cisco ASR 1000 family.
Cisco ASR1001 Dubai is designed for high-end enterprise, data center, service provider edging network in order to handle explosive traffic through the network. It supports only software redundancy, and it is based on a Quad-core 2.13GHz processor with 4GB memory, 8GB flash memory, 1 SPA bay, SPA interface processor 10 (SIP10).
Features:
Investment Protection
- Pay-as-you-grow forwarding thoughput is upgradable from 2.5 to 5,10, and 20 Gbps
- Built-in 2 X 10 GE accelerates 1 GE to 10 GE transition without additional hardware
- Expanded container app support is included for future virtual applications and services
- The compact 1RU form factor increases rack space and reduces power and cooling costs
High-Performance Security
The Cisco ASR1001 Dubai includes:
- High-performance security for crypto, firewall, and Network Address Translation (NAT) sessions
- Robust deep packet inspection performance at high throughputs for Cisco Application, Visibility, and Control
Flexible Deployment
The Cisco ASR1001 Dubai provides Data Center Interconnect (DCI) Services to support Overlay Transport Virtualization (OTV), Virtual Extensible LAN (VXLAN), Locator/ID Separation Protocol (LISP) and Virtual Private LAN Services (VPLS).
Technical Specs
| General Information | |
| Category | Routers |
| Description | Cisco ASR 1001 – Router – rack-mountable – with Cisco ASR 1000 Series Embedded Services Processor, 5Gbps |
| Manufacturer | Cisco Systems |
| MSRP | $43,150.50 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 47 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Width | 43.9 cm |
| Header / Brand | Cisco |
| Networking / Connectivity Technology | Wired |
| Networking / Form Factor |
|
| Networking / Type | Router |
| OS Provided / Type | Cisco IOS Advanced Enterprise Services |
| Packaged Quantity | 1 |
| RAM / Installed Size | 4 GB |
| Dimensions & Weight | |
| Depth | 47 cm |
| Height | 4.3 cm |
| Width | 43.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 – 85% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Interfaces |
|
| General | |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 300 386 |
| Connectivity Technology | Wired |
| Device Type | Router – with Cisco ASR 1000 Series Embedded Services Processor, 5Gbps |
| Enclosure Type | Desktop, rack-mountable |
| Features | Firewall protection, NAT support, VPN support, Intrusion Prevention System (IPS), Access Control List (ACL) support, Quality of Service (QoS) |
| Performance |
|
| Processor | Core Duo |
| RAM | 4 GB (installed) / 8 GB (max) |
| Power | |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Provided | Cisco IOS Advanced Enterprise Services |
