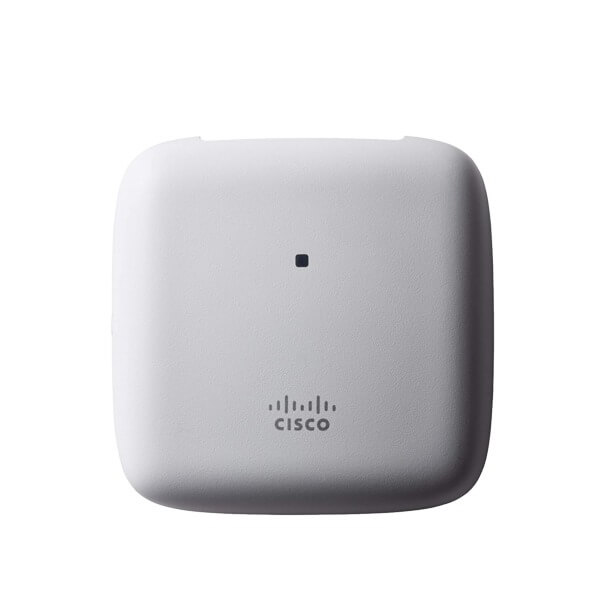

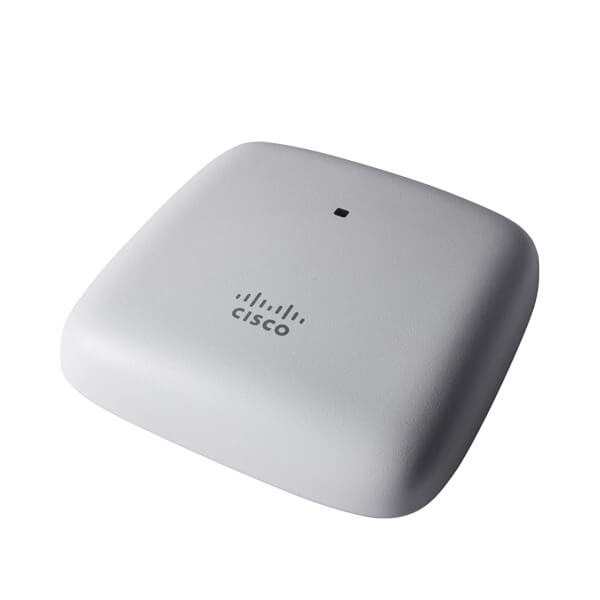

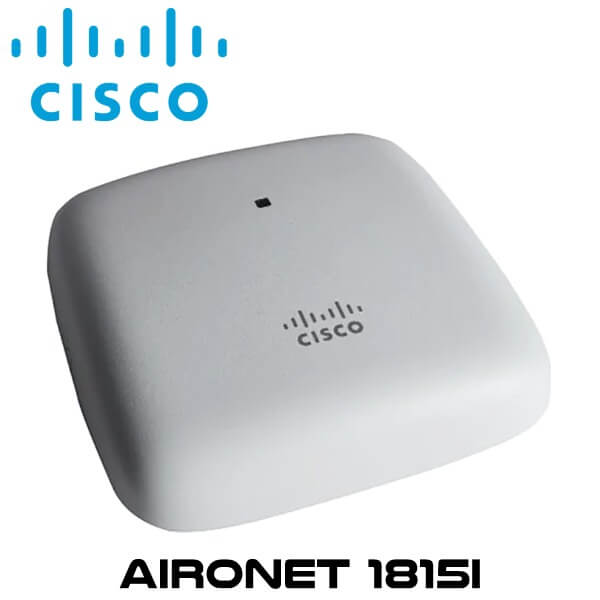

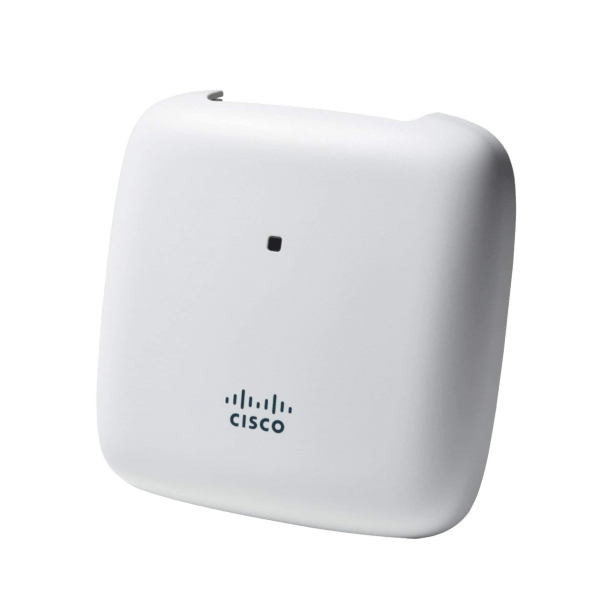

Cisco Aironet1815i Access Point Dubai
The Cisco Aironet1815i Dubai delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2 (Figure 1). It also meets the growing requirements of wireless networks by delivering a better user experience.
The Cisco Aironet1815i Dubai extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.
By adhering to the 802.11ac Wave 2 standard, the 1815i offers a data rate of up to 867 Mbps on the 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.
Features:
Increased wireless performance
The Cisco Aironet1815i Dubai access point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.
Wired access
The Cisco Aironet1815i Dubai allows wired access via a single RJ-45 10/100/1000 auto-detection port. It supports full operation modes using PoE 802.3af power.
Mounting
These sleek access points with a small form factor are designed with flexible mounting options in mind. You can mount them directly on the ceiling or a wall. They are also easy to install.
MU-MIMO-
Multiuser (MU) Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO).
802.11ac Wave 2 with 2×2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.
Cisco Mobility Express solution
Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1815i to be deployed on networks without a physical controller.
Integrated Bluetooth 4.1
Integrated Bluetooth Low-Energy (BLE) 4.1 radio for location and asset tracking (future availability).
Specifications
General | |
Device Type | Wireless access point |
Ruggedized Design | Indoor |
Width | 5.9 in |
Depth | 5.9 in |
Height | 1.3 in |
Weight | 14.11 oz |
Localization | Colombia, Venezuela, Canada, Chile, Bolivia, Uruguay, Peru, Paraguay, Ecuador, Costa Rica, El Salvador |
Processor / Memory / Storage | |
Processors Installed | 710 MHz |
RAM | 1 GB |
Flash Memory | 256 MB |
Expansion / Connectivity | |
Interfaces |
|
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Power Consumption Operational | 8.3 Watt |
Antenna | |
Antenna | Internal |
Networking | |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 1 Gbps |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
Frequency Band | 2.4 GHz, 5 GHz |
Status Indicators | Status |
Features | VLAN support, Wi-Fi Multimedia (WMM) support, 2T2R MIMO technology, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), MU-MIMO technology, WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Dynamic Frequency Selection (DFS) |
Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA, WPA2 |
Authentication Method | RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.3at, Bluetooth 4.1, IEEE 802.11r, IEEE 802.11ac Wave 2 |
Manufacturer Warranty | |
Service & Support | Limited warranty – advance hardware replacement – lifetime – response time: 10 days |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 – 90% (non-condensing) |
Miscellaneous | |
Included Accessories | Mounting brackets, Torx security screw |
Compliant Standards | VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, FCC, AES, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EMI, EN 300 328, RSS-247, EN 301 893, AAA, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17 |
