Description

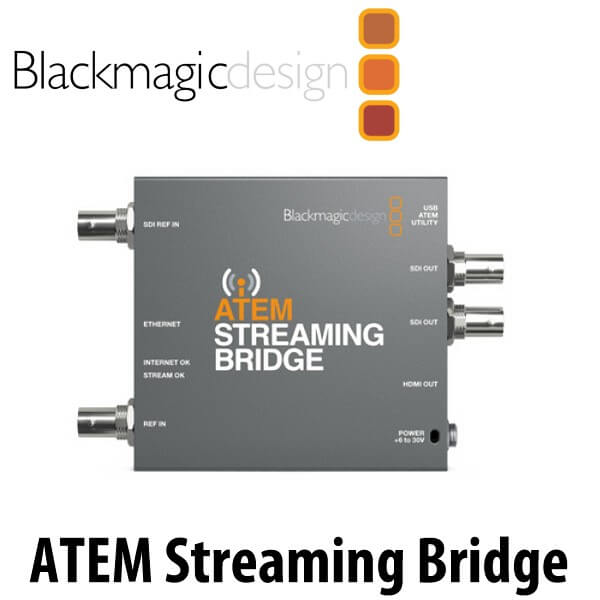

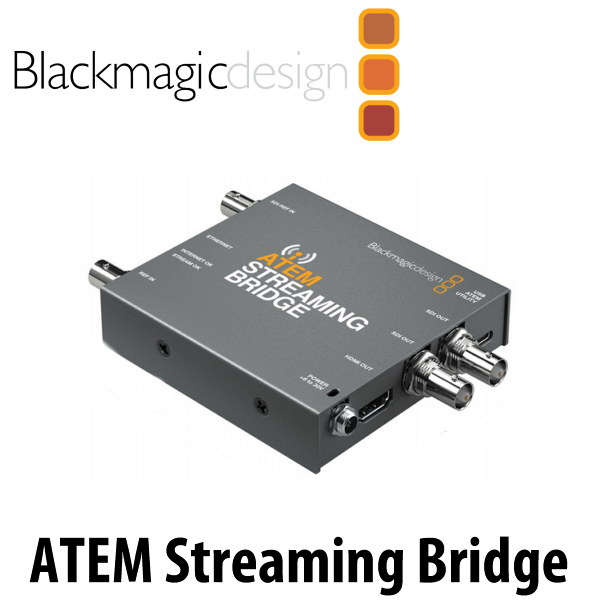

Blackmagic Atem Streaming Bridge Video Converter Dubai
The Blackmagic Atem Streaming Bridge Dubai is a video converter designed to enable you convert the IP signal from any ATEM Mini Pro unit into SDI and HDMI video. It features two SDI outputs and a single HDMI output and supports resolutions up to 1080p60. You can connect the Streaming Bridge directly to the streaming output of your ATEM Mini Pro, and it will provide SDI and HDMI output for use in broadcast environments, or directly to a monitor. You can also connect the streaming bridge to the same LAN that an ATEM Mini Pro is connected to, and the devices will find each other allowing you to easily stream across the network.
The downloadable software on the Blackmagic Atem Streaming Bridge Dubai enables you control the decoding settings as well as set an IP address to the device and save that information to your computer. That information can be emailed to any computer connected to an ATEM Mini Pro, and this allows the Blackmagic Atem Streaming Bridge Dubai to locate and stream to the Streaming Bridge connected to the internet.
- Video converter which lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI & HDMI video
- Send video to remote locations around your local Ethernet network, or via the internet globally
- Uses advanced H.264 codecs for higher quality at very low data rates
Specifications
| Input |
|
| Audio Input Connectors | None |
| Output | |
| Video Output Connectors |
|
| Output Video Format | HDMI
SDI (10-Bit 4 : 2 : 2 YUV)
|
| Audio Output Connectors | None |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M-B/425M-A/425M-B |
| Connectivity | |
| Other I/O | 1 x RJ45 2 x BNC Reference |
| Expansion Slots | None |
| IP Streaming | |
| Video IP Decoding | H.264 : 1920 x 1080 |
| Power | |
| Power Connector | 1 x Barrel (6 to 30 VDC) Input |
| Power Consumption | Device : 6 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% (Recommended) |
| General | |
| Certifications | CE, FCC, Kcc |
| Dimensions | 5.28 x 3.63 x 0.9″ / 13.41 x 9.22 x 2.29 cm |
| Weight | 8.1 oz / 230 g |
| Packaging Info | |
| Package Weight | 1.07 lb |
| Box Dimensions (LxWxH) | 5.8 x 5.5 x 2.7″ |
