Description

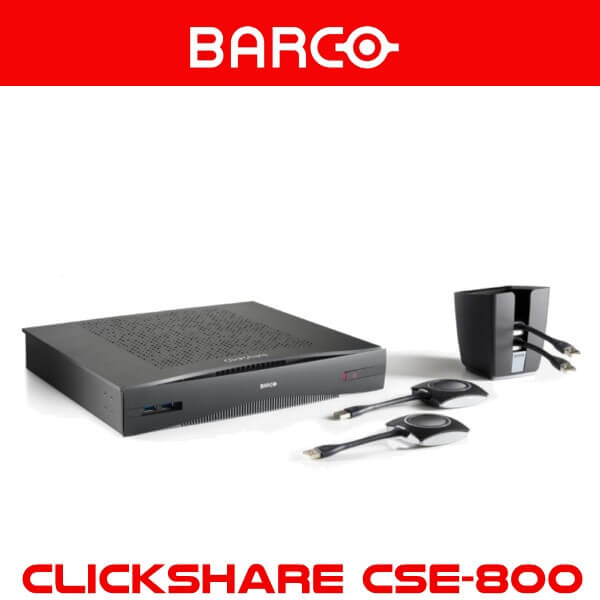

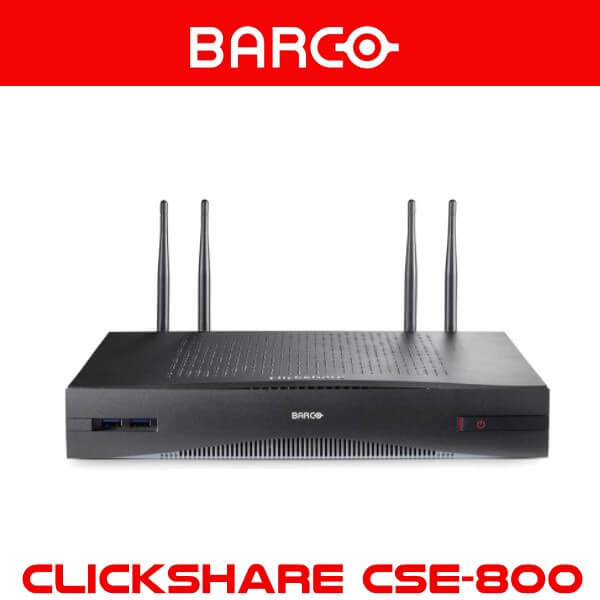

Barco ClickShare CSE-800 Dubai

The Barco ClickShare CSE-800 Dubai was designed for enterprise rollouts and offers enhanced security features, a wider range of connectivity options including AirPlay and Google Cast support for non-HDCP content and central management. With the ClickShare Apps, users can also share content from their laptops, mobile phones or tablets. Make sure to have the latest firmware installed on your Base Unit to enable the best experience with the Desktop App. The Barco ClickShare CSE-800 Dubai features two HDMI inputs and outputs. There is a direct connection with legacy equipment and easy integration with conferencing systems, and two 4K DCI displays can be driven by a single base unit. Furthermore, the 2 network connections allow separate and simultaneous connection to multiple networks (e.g. guest and corporate networks) and provide additional security and convenience for users. Allowing up to 8 persons to share content simultaneously, the ClickShare CSE-800 Dubai ensures connectivity to the central screen and encourages collaboration. The moderation functionality was specifically designed for use in larger rooms, with multiple people sharing at the same time. To prevent the rapid switching of screens, making the content difficult to follow, a moderator can manually select which content appears on the screen and when ensuring a great experience for all attendees. The moderation function can be switched off at any time, returning the system into ClickShare’s normal operating mode, with the content being shared upon the click of a button. For user convenience, the security features of the ClickShare CSE-800 Dubai can be set to one of three predefined levels, depending on the company’s policies and needs.

Barco ClickShare Dubai introduces touchback support and ideation in your boardrooms. Run any application from your laptop and control it from the screen. With a few touches on the screen, open presentations, share mails, start a video.  Focus on audience and content instead of on your presentation tool. The ClickShare CSE-800 Dubai is also one of the building blocks of the Barco Ideation Wall for interactive and collaborative meetings. By simply combining a Barco UniSee LCD video wall, a specifically designed Touch frame for Barco UniSee and a ClickShare CSE-800 which supports annotation, blackboarding and touchback support out of the box, you create a single, unified experience in your meeting room allowing you to enjoy both the interactivity features that our wireless collaboration solution ClickShare Dubai offers and the seamless viewing experience of Barco UniSee, never seen on LCD video walls before. The Barco ClickShare CSE-800 Dubai is a product created with ISO 27001 certified flows and processes. Adding ClickShare CSE-800 to your fixed conference room set-up (like a Microsoft Teams or Zoom room) enhances interactivity, productivity and collaboration in your Microsoft Teams and Zoom meetings. It brings the focus from conferencing back to truly collaborating.

Barco ClickShare CSE-800 Specifications

ClickShare Base Unit dimensions

• Dimensions (HxWxD): 46.2mm x 282.3mm x 206.5mm (excl. antennas) / 1.8″ x 11.1″ x 8.1″, 146.4mm x 282.3mm x 206.5mm (incl. antennas) / 5.8″x 11.1″ x 8.1″
• Power supply: Standard 110/220 V AC plug
• Power consumption:
  • Normal operation: 90W under full usage, 52W under normal usage (connect 2 HDMI outputs, connect 1 HDMI input, share with 4 people)
  • ECO mode: 30W
  • Networked standby mode: < 1W
  • Deep standby mode: < 0.5W
• Weight: 2.2kg / 4.85lbs

General specifications

• Operating system:
  • Windows 7/8/8.1/10 32 & 64 bit
  • macOS 10.14/10.15 (Catalina),
  • Android 9 & 10 (ClickShare app)
  • iOS 11, 12 & 13 (ClickShare app)
• Video outputs: 2x HDMI 1.4b
• Video inputs: 2x HDMI 1.4b
• Output resolution: 4K DCI (4096×2160) @ 60Hz
• Input resolutions: 4K DCI (4096×2160) @ 60Hz
• Audio: Via HDMI, analog via Audio Jack 3.5mm, S/PDIF
• AirPlay Support: iOS 11, 12 & 13 / macOS 10.14, 10.15
• Google Cast Support: Android 9, 10
• Frame rate:
  • Using HDMI inputs, Up to 60fps with one input @ 4K, Up to 30fps with two inputs @ 4K*
  • Using the ClickShare Button or Apps: Up to 30 fps @1080p
• Number of sources simultaneous on-screen: 8 (4 per screen)
• Number of simultaneous connections: 64 (Button and/or App)
• iPad, iPhone and Android compatibility: Sharing of documents, browser, camera for both Android and iOS devices via ClickShare app or using AirPlay / Google Cast
• Extended desktop: Available for Windows, requires ClickShare Extension Pack.
• Authentication protocol: WPA2-PSK in stand-alone mode, WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
• Wireless transmission protocol: IEEE 802.11 a/b/g/n and IEEE 802.15.1
• Reach: Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
• Frequency band: 2.4 GHZ and 5 GHz (not all DFS channels supported. Full details can be found in the network deployment whitepaper)
• Connections:
  • 2x Ethernet LAN 1Gbit
  • 2x USB 2.0; 2x USB 3.0 (back); 2x USB 3.0 (front)
  • Audio analog line out on mini jack socket (3.5mm)
  • digital S/PDIF
• Noise Level: Max. 25dBA @ 0-30°C, Max. 30dBA @ 30-40°C
• Temperature range:
  • Operating: 0°C to +40°C (+32°F to +104°F), Max: 35°C (95°F) at 3000m
  • Storage: -20°C to +60°C (-4°F to +140°F)

• Humidity: Storage: 0 to 90% relative humidity, non-condensing, Operation: 0 to 85% relative humidity, non-condensing
• Anti-theft system: Kensington lock
• Certifications: FCC/CE
• Warranty: 3 years standard, Possible to extend to 5 years
