Description

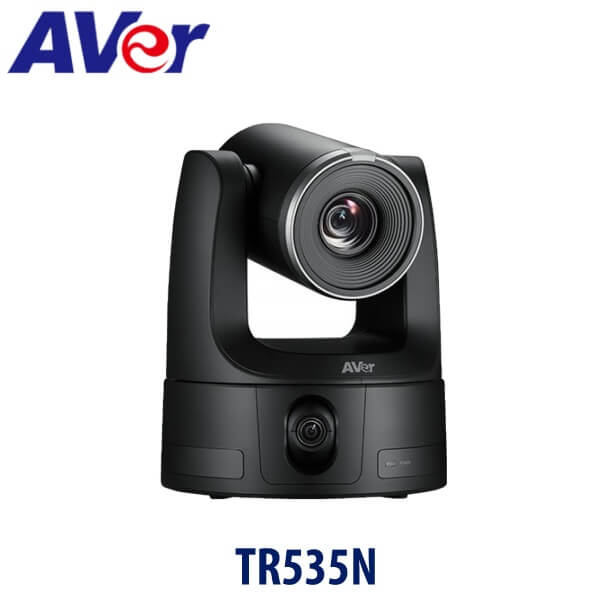

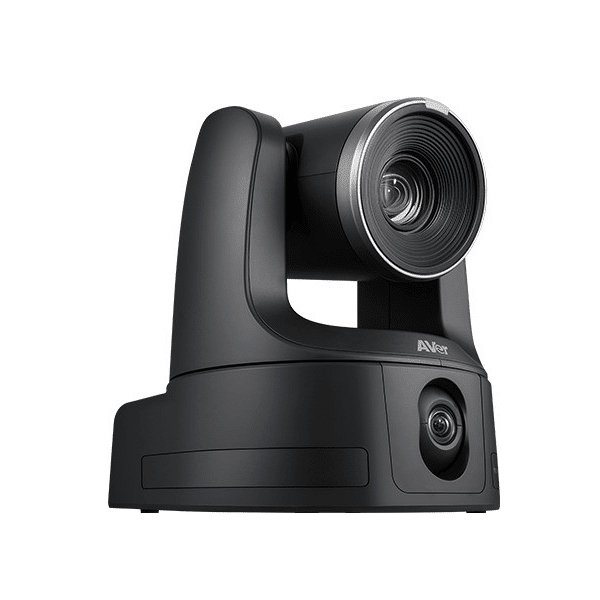

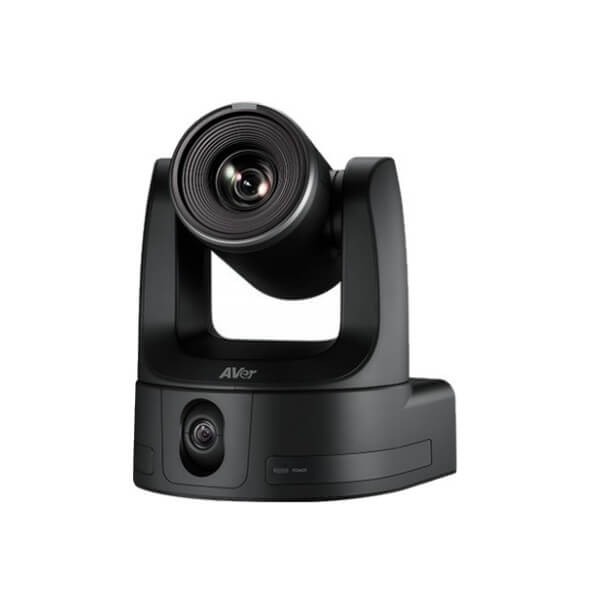

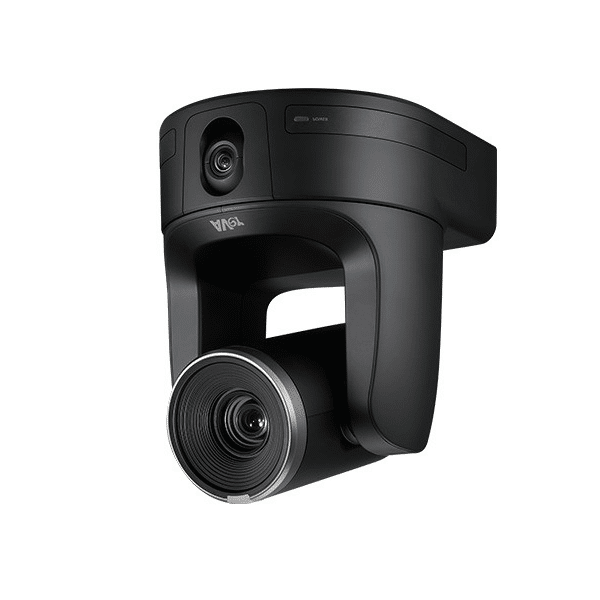

Aver TR535N Dual Lens Auto Tracking Camera Dubai

Step into the future of streaming with the Aver TR535N Dubai, an advanced NDI® Dual Lens Auto Tracking Camera designed to elevate your broadcast, recording, and streaming capabilities. This cutting-edge camera combines full NDI® integration with sophisticated AI-driven auto tracking to deliver unmatched performance across a wide array of applications. The Aver TR535N Dubai features a powerful 30X zoom lens that captures intricate details with crystal-clear precision, while its wide-angle lens ensures that the entire scene is covered, making it ideal for dynamic environments.

The dual-lens setup allows seamless transitions between wide shots and detailed close-ups, ensuring that no moment is missed. Whether you’re broadcasting live events, recording educational sessions, or streaming dynamic presentations, the TR535N’s four advanced AI tracking modes provide exceptional accuracy and fluidity. Each mode is designed to adapt to different scenarios, offering unparalleled flexibility. With the Aver TR535N Dubai, you’re not just capturing video—you’re creating an immersive experience that combines innovation, quality, and reliability.

Features

• NDI® High Bandwidth
• Dual Lens Design
• 4K Ultra HD Resolution
• 30X Optical Zoom
• IP/HDMI/USB/3G-SDI
• PiP Mode
• 4 Auto Tracking Modes
• Multi-Presenter Detection
• Voice Tracking
• 5-Year Warranty

Technical Specifications

PTZ Camera

• Image Sensor
  • 1/2.8” 4K Sony Exmor CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 5 lux (IRE50, F1.6, 30fps)
• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual
• TV Lines
  • 1600 (Center)
• Shutter Speed
  • 1/1 to 1/10,000 sec
• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push, Indoor, Outdoor
• Optical Zoom
  • 30X
• Digital Zoom
  • 1X
• Total Zoom
  • 30X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 2.8° (Tele)
  • HFOV: 62.3° (Wide) to 2.5° (Tele)
  • VFOV: 37.3° (Wide) to 1.4° (Tele)
• Focal Length
  • f = 4.5 mm (Wide) to 135 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)
• Minimum Working Distance
  • 1 m (Wide)
  • 2 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°
  • Tilt : +90° / -30°
• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec
  • Tilt : 200° / sec
• Preset Positions
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP
  • USB
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • USB
  • ONVIF
• Image Processing
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror
  • WDR
  • BLC
• Power Frequencies
  • 50 Hz, 60 Hz

Wide Angle Camera

• Image Sensor
  • 1/2.8” 4K Sony Low Lux CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/30
• Focal Length
  • 22 mm
• White Balance
  • Auto
• Exposure
  • Auto
• Viewing Angles
  • DFOV: 113°
  • HFOV: 105°
  • VFOV: 71°
• Pan / Tilt Angles
  • Tilt: +18° / -90°

AI Auto Tracking Functions

• Tracking Modes
  • Presenter Mode
  • Zone Mode
  • Hybrid Mode
  • Segment Mode

Privacy Protection Mechanisms

• Protection Mode
  • Sleep Mode

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC (48 K)
• Sample Rates
  • 48 KHz

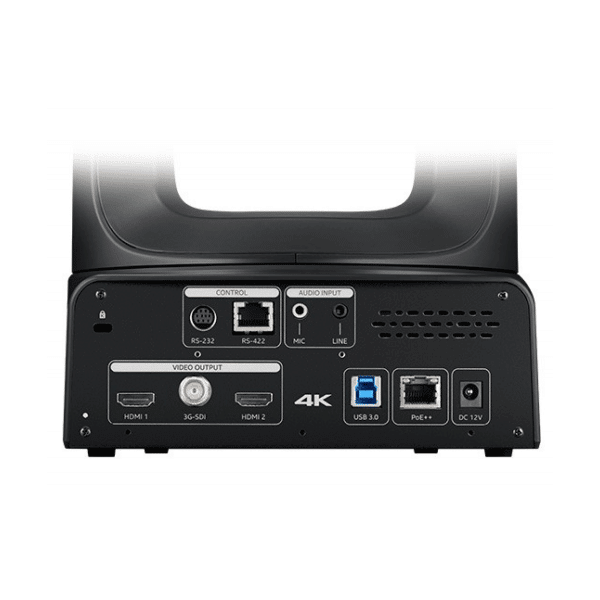

Interface

• Video Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/5A
• Power Consumption
  • 29W
• PoE
  • PoE++
• Dimensions (W x H x D)
  • 5 x 250.7 x 218.5 mm
• Net Weight
  • 6 (±0.1) kg
• Application
  • Indoor
• Tally Lamp
  • Yes
• Security
  • Kensington Slot
• Remote Control
  • Infrared
• Operating Conditions
  • Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
• Storage Conditions
  • Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
• Sustainability
  • Plastic Material: ABS
  • Sustainability Method: PCR-PC
  • Recycled Content %: 30%

IP Streaming

• Resolution
  • 4K 60fps
• Network Video Compress Formats
  • 264, H.265, MJPEG
• Network Audio Compress Formats
  • AAC-LC (48 K)
• Maximum Frame Rate
  • 2160p 60fps
• Bit-Rate Control Modes
  • VBR, CBR (selectable)
• Range of Bit-Rate Setting
  • 512 Kbps to 64 Mbps
• Network Interface
  • 10 / 100 / 1000 / 2500 Base-T
• Multi-Stream Capability
  • 10
  • 4K 60fps: RTSP (x2), HDMI (x2), USB (x2), NDI^®High Bandwidth (x1), & NDI^® HX2 (x2)
  • 1080p 60fps: 3G-SDI
• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI^®High Bandwidth
  • Yes
• NDI^®HX2
  • Yes
• NDI^®Genlock
  • N/A
• NDI^®Embedded Bridge
  • N/A

USB

• Connector
  • USB 3.2 Gen 1
• Video Formats
  • MJPEG, YUY2
• Audio Format
  • PCM
• Maximum Video Resolution
  • 2160p
• USB Video Class (UVC)
  • UVC 1.1
• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows^®7 or later
• PTZ Management
  • Support Windows^®7 or later
• PTZ Control Panel
  • Supports iOS & iPadOS^®9 or later
• PTZ Link
  • Supports Windows^®7 or later, macOS^®14 or later
• OBS Plugin for PTZ Cameras
  • Supports Windows^®8 or later, macOS^® High Sierra v10.13 or later
• CaptureShare
  • Supports Windows^®7 or later, macOS^®14 or later

Warranty

• Camera
  • 5 Years
• Accessories
  • 1 Year
• Package Contents
  • Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4′-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
• Optional Accessories
  • Aver CL01 PTZ Camera Controller, L-Type Wall Mount
