• Optical Zoom

  • 30X

• Digital Zoom

  • 1X

• Total Zoom

  • 30X

• Viewing Angles

  • DFOV: 69.2° (Wide) to 2.8° (Tele)
  • HFOV: 62.3° (Wide) to 2.5° (Tele)
  • VFOV: 37.3° (Wide) to 1.4° (Tele)

• Focal Length

  • f = 4.5 mm (Wide) to 135 mm (Tele)

• Aperture (Iris)

  • F = 1.8 (Wide) to 4.7 (Tele)

• Minimum Working Distance

  • 0.1 m (Wide)
  • 1.2 m (Tele)

• Pan / Tilt Angles

  • Pan : ±170°
  • Tilt : +90° / -30°

• Pan / Tilt Speed (Manual)

  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec

• Preset Speed

  • Pan : 200° / sec
  • Tilt : 200° / sec

• Preset Positions

  • 10 (IR)
  • 256 (RS-232, RS-422, IP)

• Camera Control – Interfaces

  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP
  • USB

• Camera Control – Protocols

  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • USB
  • ONVIF

• Image Processing

  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror
  • WDR
  • BLC

• Power Frequencies

  • 50 Hz, 60 Hz

Wide Angle Camera

• Image Sensor

  • 1/2.8” 4K Sony Low Lux CMOS

• Effective Picture Elements

  • 8 Megapixels

• Output Resolutions

  • 4K/30

• Focal Length

  • 2.22 mm

• White Balance

  • Auto

• Exposure

  • Auto

• Viewing Angles

  • DFOV: 113°
  • HFOV: 105°
  • VFOV: 71°

• Pan / Tilt Angles

  • Tilt: +18° / -90°

AI Auto Tracking Functions

• Tracking Modes

  • Presenter Mode
  • Zone Mode
  • Hybrid Mode
  • Segment Mode

Privacy Protection Mechanisms

• Protection Mode

  • Sleep Mode

Audio

• Channels

  • 2ch Stereo

• Codecs

  • AAC-LC (48 K)

• Sample Rates

  • 48 KHz

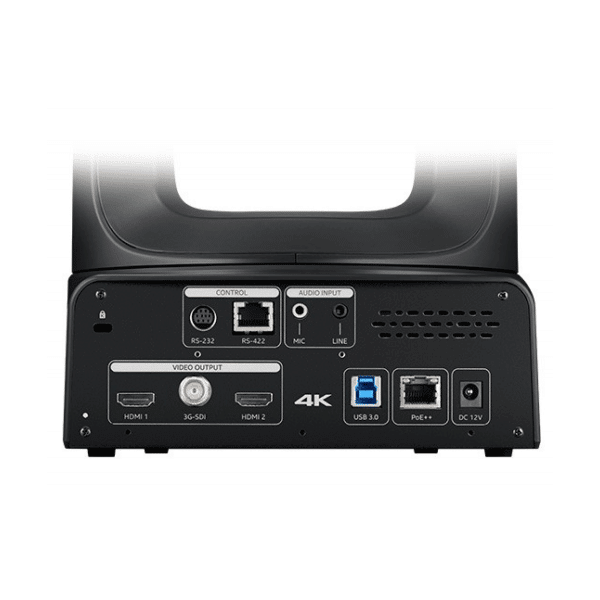

Interface

• Video Outputs

  • 3G-SDI, HDMI x 2, IP, USB

• Audio Outputs

  • 3G-SDI, HDMI x 2, IP, USB

• Audio Inputs

  • MIC in, Line in

General

• Power Requirement

  • AC 100 – 240V to DC 12V/5A

• Power Consumption

  • 29W

• PoE

  • PoE++

• Dimensions (W x H x D)

  • 202.5 x 250.7 x 218.5 mm

• Net Weight

  • 3.6 (±0.1) kg

• Application

  • Indoor

• Tally Lamp

  • Yes

• Security

  • Kensington Slot

• Remote Control

  • Infrared

• Operating Conditions

  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%

• Storage Conditions

  • Temperature : -20 °C to +60 °C
  • Humidity: 20% to 95%

• Sustainability

  • Plastic Material: ABS
  • Sustainability Method: PCR-PC
  • Recycled Content %: 30%

IP Streaming

• Resolution

  • 4K 60fps

• Network Video Compress Formats

  • H.264, H.265, MJPEG

• Network Audio Compress Formats

  • AAC-LC (48 K)

• Maximum Frame Rate

  • 2160p 60fps

• Bit-Rate Control Modes

  • VBR, CBR (selectable)

• Range of Bit-Rate Setting

  • 512 Kbps to 64 Mbps

• Network Interface

  • 10 / 100 / 1000 / 2500 Base-T

• Multi-Stream Capability

  • 7
  • 4K 60fps: RTSP (x2), HDMI (x2) & USB (x2)
  • 1080p 60fps: 3G-SDI

• Network Protocols

  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

• NDI^®High Bandwidth

  • N/A

• NDI^®HX2

  • N/A

• NDI^®Genlock

  • N/A

• NDI^®Embedded Bridge

  • N/A

USB

• Connector

  • USB 3.2 Gen 1

• Video Formats

  • MJPEG, YUY2

• Audio Format

  • PCM

• Maximum Video Resolution

  • 2160p

• USB Video Class (UVC)

  • UVC 1.1

• USB Audio Class (UAC)

  • UAC 1.0

Web UI

• Live Video Preview

  • Yes

• Camera PTZ Control

  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera / Image Adjustment

  • Exposure, White Balance, Picture

• Network Configuration

  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool

  • Support Windows^® 7 or later

• PTZ Management

  • Support Windows^® 7 or later

• PTZ Control Panel

  • Supports iOS & iPadOS^® 9 or later

• PTZ Link

  • Supports Windows^® 7 or later, macOS^® 10.14 or later

• OBS Plugin for PTZ Cameras

  • Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later

• CaptureShare

  • Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

• Camera

  • 5 Years

• Accessories

  • 1 Year

• Package Contents

  • Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4′-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide

• Optional Accessories

  • Aver CL01 PTZ Camera Controller, L-Type Wall Mount
