Description

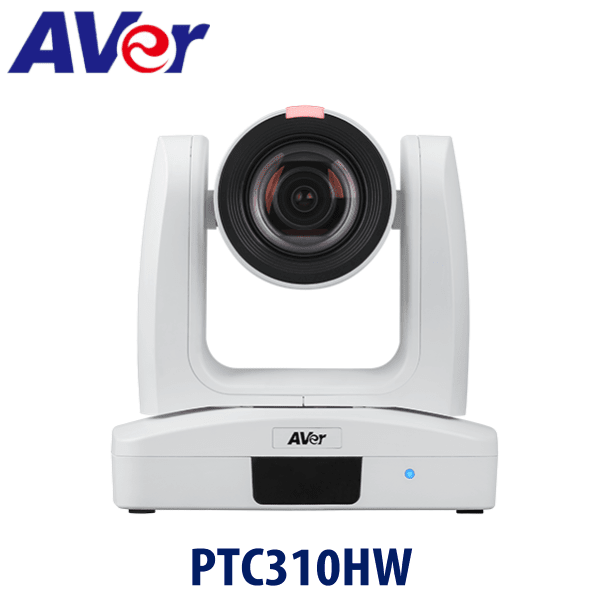

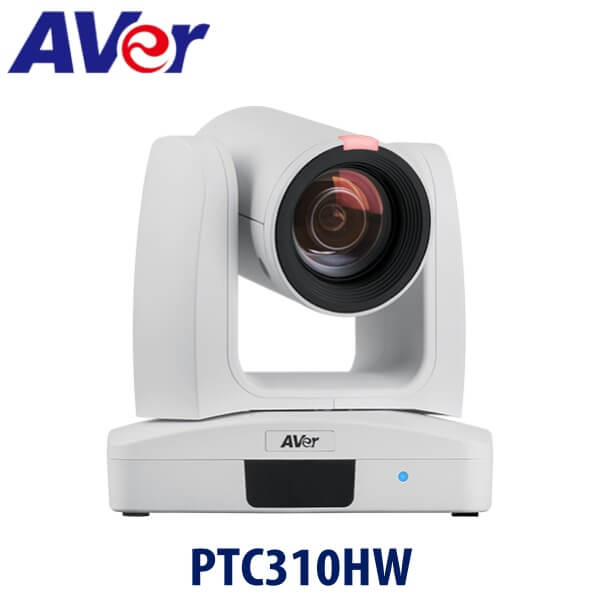

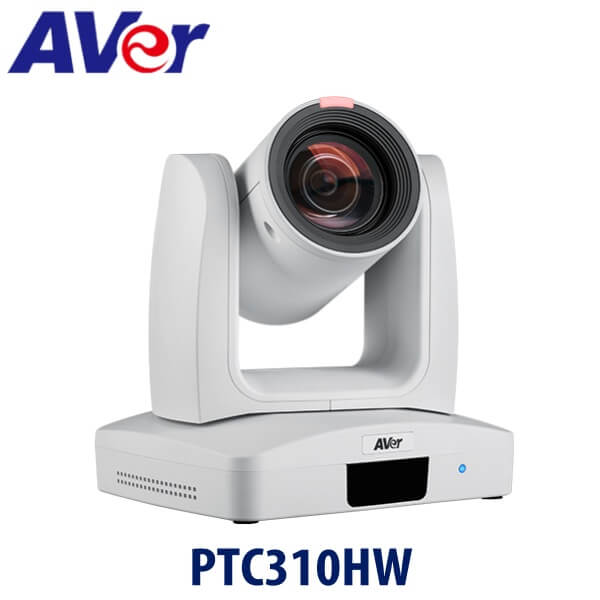

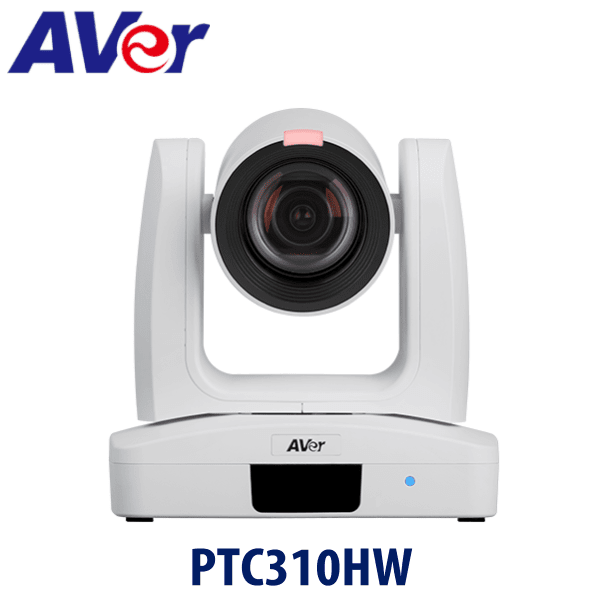

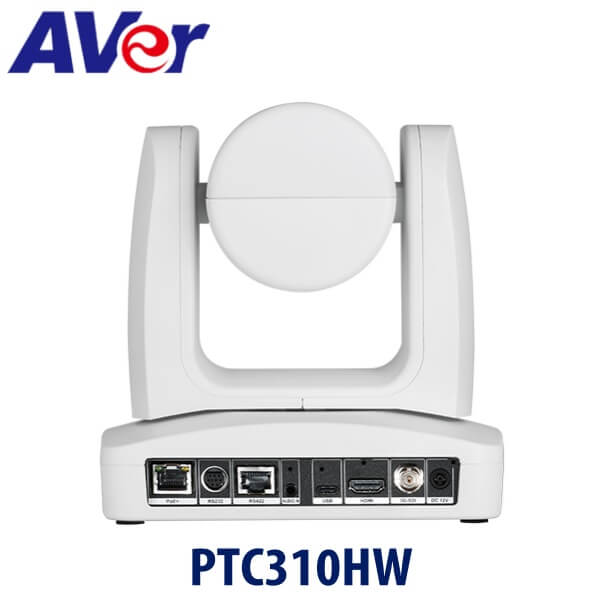

AVer PTC310HW AI Auto Tracking Camera Dubai
The AVer PTC310HW Dubai is a professional PTZ Camera and is equipped with in-house AI functions like Presenter Mode and Zone Mode Auto – tracking, courtesy of the smart Human Detection Artificial Intelligence. The Presenter Mode gives the presenter full mobility, in that they can leave the stage and interact with the audience while the camera is still tracking them. Zone Mode on the other hand enhances your ability to capture the content on multiple displays, and further allow you to create up to 4 Content Zones so as to steadily capture the content on the display, without being distracted by the presenter’s movements. A dedicated Sony Sensor enables the user to maintain an excellent video performance throughout the production process. Its Click and Track feature enables you to easily click on a target to quickly adjust the shooting angle and begin the tracking process, allowing you to redirect quickly as desired. An intuitive web UI enables the user to enjoy full remote control of the camera.
The AVer PTC310HW Dubai video conferencing system can be used in learning institutions such as lecture halls and auditoriums since it has powerful auto – tracking capabilities. It is indeed a cost effective solution as compared to traditional conventional systems.
Features :
- Premium Design
-
- The powerful AVer PTC310HW Dubai Artificial Intelligence Auto Tracking PTZ Camera is built to enable professional AV capability with maximum convenience to every user. Just like other AVer Pan-Tilt-Zoom cameras, the AVer PTC310HW camera boasts of cutting-edge functions like Presenter Mode and Zone Mode which uses a Human Detection Processing smart algorithm. This enables you to keenly and efficiently carry out your auto tracking activities.
- Human Detection AI
- This is a brilliant Technique which the AVer PTC310HWÂ Dubai camera onboards to detect and capture human subjects and moving objects within the room during presentations. This artificial intelligence has been meticulously crafted to offer unrivaled accuracy and guaranteed you sharp focus. Now you can step into your production room and capture amazing content without losing track of your target whenever you are carrying out presentations.
- 4K Output Resolution
- The AVer PTC310HW Dubai camera has 4K output resolution and an Ultra High Definition resolution of 1080p at 30 frames per second, capturing crystal clear images. It is engineered with a Sony sensor to offer users amazing performance for every shoot, along with vital additions like auto exposure, autofocus, and auto white balance.
- Pan, Tilt & Zoom
- The onboard PTZ motorized camera on the AVer PTC310HW Dubai adjusts focus, pans, and tilts speedily with absolutely no sound at all, ensuring that your meetings are not distracted by shutter and zoom sounds. For more stability and control, the camera moves faster during zooming out to achieve quick framing, then moves slower when zooming in.
- 24× Zoom Power
- The AVer PTC310HW Dubai has an impressive zoom power of up to 24× (12× optical zoom power and 2× sensor zoom power). This offers you amazing abilities to carry out functions such as highlighting content and changing shooting angles randomly, even when the camera is panning and tilting. The well-designed Pan-Tilt-Zoom performance offers you crystal clear video without motion blur, even when the subject has been zoomed in to a tight close-up.
- Effective Picture Elements
- The AVer PTC310HW Dubai camera uses its 8 Megapixels and minimum illumination power of 0.4 lux (IRE50, F1.6 at 30 frames per second) for optimum light balance, color adjustment, and image saturation to give the user even skin tones and natural human look for all skin complexions. The output video is therefore clear, quality, and balanced, with every meeting participant visible regardless of the light intensity in your conference room.
- Keen Focus
- The AVer PTC310HW Dubai camera enables you to easily redirect focus by clicking on a target to quickly adjust the shooting angle and start tracking. This can be controlled either through its sleek remote control or the brilliantly designed Web UI. From there one can operate the advanced tracking feature of the AVer PTC310HW, regardless of how basic their technical skills are
- Presenter Mode
- The AVer PTC310HW Dubai camera uses the Presenter Mode to effortlessly track the main target everywhere within the meeting room. When using this mode, the presenter is given a freeroll to wander around the room and interact with other participants at close range while being continuously tracked by the camera.
- Zone Mode
- Zone Mode is an advanced feature on the AVer PTC310HW Dubai camera to enhance your ability to capture content on several displays simultaneously. This presents you with the freedom to create up to four content zones, with focus on displayed content rather than the presenter’s movements within the room.
AVer PTC310HW Specifications :
Image Sensor | 1/ 2.8″ 4K
Exmor CMOS |
Effective Picture Elements | 8 megapixels |
Output Resolutions | 4K/30, 4K/29.97,
4K/25, 1080p/60, 1080p/59.94, 1080p/50,1080p/30, 1080p/29.97, 1080p/25,1080i/60, 1080i/50,720p/60, 720p/59.94,720p/50 |
Minimum Illuminations | 0.4 lux (IRE50, F 1.6, 30fps) |
S/N Ratio | ≥50dB |
Gain | Auto, Manual |
TV Line | 1400 (center) |
Shutter Speed | 1/1 to 1/32000 sec |
Exposure Control | Auto, Manual, Priority AE (Shutter, Iris), BLC, WDR |
White Balance | Auto, Manual |
Optical Zoom | 12 × |
Digital Zoom | 12 × |
Sensor Zoom | 2 × |
Viewing Angles | DFOV : 78°(Wide) to 7°(Tele)
HFOV : 70° (Wide) to 6° (Tele) VFOV : 42° (Wide) to 3°(Tele) |
Focal Length | f = 3.9mm (Wide) to 46.8mm (Tele) |
Aperture (Iris) | F = 1.6mm (Wide) to 2.8mm (Tele) |
Minimum Working Distance | 0.3m (Wide), 1.5m (Tele) |
Pan/Tilt Angles | Pan : ±170°
Tilt : 90°/ -30° |
Pan/Tilt Speed (Manual) | Pan : 0.1° to 100°/sec
Tilt : 0.1° to 100°/sec |
Preset Speed | Pan : 200°/sec
Tilt : 200°/sec |
Preset Positions | 10 (IR), 256(RS -232) |
Camera Control – Interfaces | RS -232 (DIN8), RS – 422(RJ45), IP |
Camera Control – Protocols | VISCA (RS – 232/ RS – 422/IP), PELCO – D & PELCO – P (RS -232/RS – 422/IP), CGI (IP) |
Image Processing | Noise Reduction(2D/3D), Flip, Mirror |
Power Frequencies | 50Hz, 60 Hz |
Tracking Modes | Presenter Mode, Zone Mode |
Channel | 2 channels (Stereo) |
Codecs | AAC – LC (48/44.1/32/24K), G.711, PCM(8K) |
Sample Rates | 48/44.1/32/24/16/8kHz |
Video Outputs | Â HDMI, IP, USB |
Audio Outputs | Â HDMI, IP, USB |
Audio Inputs | MIC in, Line in |
Power Requirement | AC100V – AC240V to DC12V/5A |
Power consumption | 18W |
PoE | PoE |
Dimensions (W × H × D) | 180.0× 183.5 × 145.0mm |
Net Weight | 1.7(±0.1) kg |
Application | Indoor |
Tally Lamp | Yes |
Security | Kensington slot |
Remote Control | Infrared |
Operating Conditions | Temperature : 0° to 40°C;
Humidity : 20% to 80% |
Storage Conditions | Temperature : -20° to 60°C
Humidity : 20% to 95% |
Resolution | 4K 30 fps |
Network Video Compress formats | H.264, H.265 MJPEG |
Maximum Frame Rates | 4K 30fps |
Bit-rate Control Modes | VBR, CBR (selectable) |
Range of Bit-rate Setting | 512Kbps to 32Mbps |
Network Interfaces | 10/100/1000 Base -T |
Multi-Stream Capability | 2 (RTSP/web page), 1080p 60fps (max.) |
Network Protocols | IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP |
NDI® |HX Capability | Yes (optional) |
Connector | USB 3.0 |
Video Format | MJPEG |
Maximum Video resolution | 2160p |
USB Video Class | UVC1.1 |
USB Audio Class | UAC1.0 |
Live Video Preview | Yes |
Camera PTZ Control | Pan, Tilt, Zoom, Focus, Preset control |
Camera /Image Adjustment | Exposure, White balance, Picture |
Network Configuration | DHCP, IP address, Gateway, Subnet mask, DNS |
IP Search & Configuration Tool | Support Windows® 7 or later |
Â
Package contents
- The AVer PTC310HW Camera
- Remote control
- Power Adapter
- Power cord
- Cable Ties (×5)
- Screws (×10)
- Cable Fixing Plates (×2)
- Ceiling Mount Brackets (×2)
- Quick Start Guide
Optional Accessories
- Aver CL01 PTZ camera controller
- L-Type Wall Mount
- RS-232 In/Out Cable
- Din 8 to D-Sub 9 Cable
