Avaya XT240 Dubai

Enjoy smooth video calls in HD 1080p resolution using the Avaya XT240 Rooms System in Dubai. Content sharing and interaction has been made easier courtesy of built-in features such as multi-party conferencing.

Add to quote

Ask for Quote & Get Low Price

Description

Avaya XT240 Rooms Systems Dubai

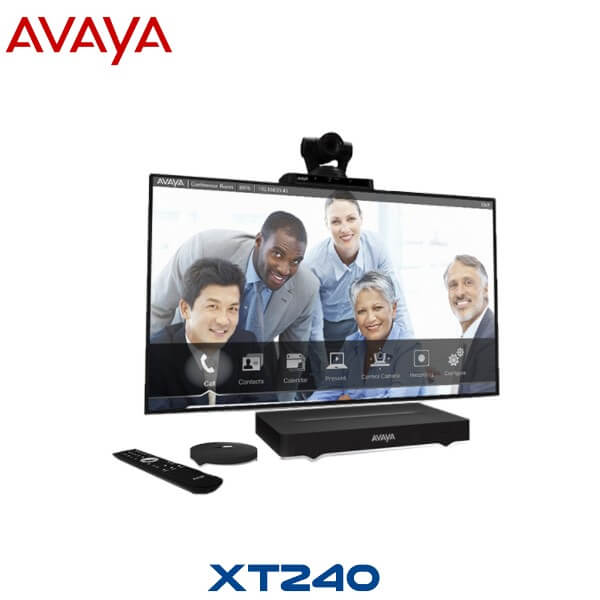

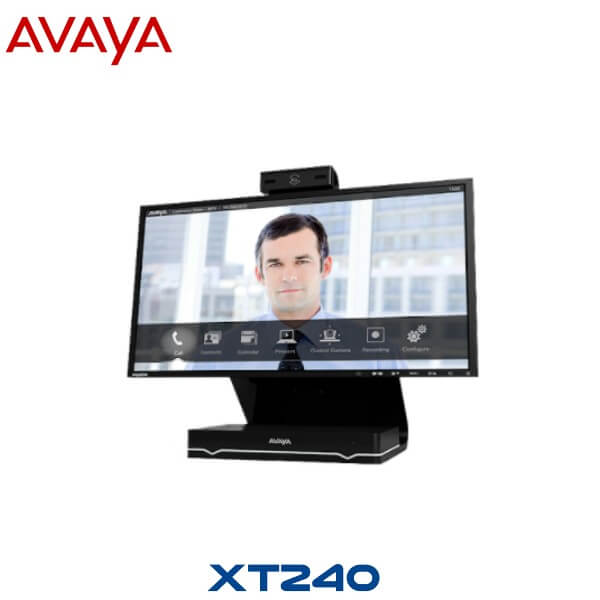

The Avaya XT240 is an all-in-one videoconference system which is based on XT- platform. It is integrated with a 24″ Full HD LCD monitor as a desktop solution. The Avaya XT240 Rooms System Dubai is designed for compatibility in space systems and infrastructure components. It also offers the 1080p60 video and content channel, an integrated 4-port MCU and an external HD 10x zoom camera and uses H.264 High Profile efficiently the same quality at for the half bandwidth. The intuitive user interface of the Executive Scopia XT 240 can be operated as a PC monitor as well as a remote control.

The Scopia XT Executive has a 24″ full HD LED display, HD camera, high fidelity speakers, echo cancelling microphone and advanced video conferencing platform that provides an elegant all-in-one desktop video conferencing system and PC display.

The Avaya XT240 Rooms System Dubai also offers optional embedded multi-party conferencing for impromptu group meetings, unique HD 1080p for highly detailed content sharing and available simultaneous 1080p video for an outstanding experience. H.264 High Profile and H.264 Scalable Video Coding (SVC) deliver bandwidth efficient, high performance video collaboration over real world networks.

XT240 Features:

Integrated Desktop Video Conferencing & PC Display
- With a 24” full HD LED display, HD camera, high fidelity speakers, echo cancelling microphone, and advanced video conferencing platform, the Scopia XT Executive delivers an elegant all-in-one desktop video conferencing system and PC display. The modern design of the XT Executive complements any executive’s desktop.
Exceptional HD Experience
- HD 1080p for highly detailed content sharing and simultaneous 720p (1080p optional) video deliver an outstanding experience. H.264 High Profile provides ultimate bandwidth efficiency and H.264 Scalable Video Coding (SVC) offers high performance over congested networks. The XT Executive delivers an exceptional experience for real-world user applications and network conditions.
Intuitive and Easy-to-Use
- Making video calls is easy, instant and intuitive with no training required. A simple-to-use application provides complete control from a PC or Mac. With Microsoft Exchange calendar support, users can join meetings directly from the integrated system calendar. The advanced on-screen participants list gives leaders full meeting moderation. For a Multi-Touch experience, the XT Executive can be enabled for management by the Apple iPad device.
Embedded Multi-Party Conferencing
- The Avaya XT240 Rooms System Dubai offers optional embedded multi-party conferencing with support for up to four participants. This dedicated multipoint collaboration capability is always at the ready for impromptu group meetings in today’s fast-paced business environment.
All-in-one Conferencing Solution
- The Avaya XT240 Rooms System Dubai is also offered as a unique all-in-one video conferencing solution. It combines the XT Executive’s video capabilities with embedded four-way multi-party conferencing, Scopia Desktop and Mobile for remote participants and BYOD initiatives, along with firewall traversal to deliver an easily deployed all-in-one collaboration solution.

Avaya XT240 – Technical Specifications

Display

Screen size: 23.6” widescreen
LED technology
Native resolution: 1920 x 1080 (16:9, 1080p)
Viewing angle: 170/160° (typical)
Brightness: 250cd/m2 (typical)
Contrast ratio: 1000:1 (typical)
Response time: 2ms
Swivel stand

Communications

IP: H.323, SIP (RFC 3261)
ISDN¹ Supported through Scopia Gateway
Bit rate: H.323, SIP: up to 6/12¹ Mbps
H.320: up to 2 Mbps
MCU compatibility: H.243, H.231

Video

2 simultaneous channels: 720p camera + content
H.263, H.263+, H.263++, H.264, H.264 High Profile, H.264 SVC (both using Baseline and High Profile)
Dual video: H.239 (H.323); BFCP (SIP)
HDMI input formats for auxiliary camera: 1920 x 10up to 80 @ 25, 30, 50, 60fps¹, 1280 x 720 @ 25, 30, 50¹, 60fps¹
Live video encoding formats: up to 1280 x 720 @ 25, 30, 50, 60fps: HD720p 25, 30, 50, 60fps
DVI input formats: up to 1920 x 1080 @ 25, 30, 50, 60fps
PC content encoding formats: Same as DVI input formats @ 60fps

Camera

Resolution: 720p 30fps (optional 180p30)
Digital Zoom: 1.8x
Field of View (H): 68°

Recording

Recording on USB key / disk, not available with encrypted call
USB disk formats: FAT32, EXT2, EXT3, EXT4
Recording formats: MP4 file

Audio

Acoustic echo cancellation
Adaptive post filtering
Audio error concealment
Automatic Gain Control (AGC)
Automatic noise suppression
Frequency response:
G.711: 300 – 3,400 Hz
G.728: 50 – 3,400 Hz¹
G.729A: 50 – 3,400 Hz¹
G.722, G.722.1: 50 – 7,000 Hz
G.722.1 Annex C: 50 – 14,000 Hz
AAC-LD: 50 – 14,000 Hz
G.719: 50 – 20,000 Hz

Microphone

180º range

Integrated Speakers

Audio/Video Interfaces

Video inputs: 1 x HDMI, 1 x DVI-I
Audio inputs: 1 x HDMI, 1 x Microphone Array Pod (RJ-11), 1 x 3.5 mm (1/8”) line in jack for audio source (analog / digital with mini-TOSLINK adapter)
Audio outputs: 1 x 3.5 mm (1/8”) line out jack (analog / digital with mini-TOSLINK adapter)

USB Ports

1 x USB3

Network Features

IPv4 and IPv6 simultaneous support
Auto Gatekeeper discovery
QoS support: IP Precedence, IP Type of Service (ToS), Differentiated Services (diffserv)
Avaya NetSense bandwidth adaptation for high quality over unmanaged networks
DTMF tones: H.245, RFC2833
SNTP date and time synchronization
IP adaptive packet management including: Flow control, Packet Loss based down-speeding, Packet Loss recovery policies

Network Protocols
