Description

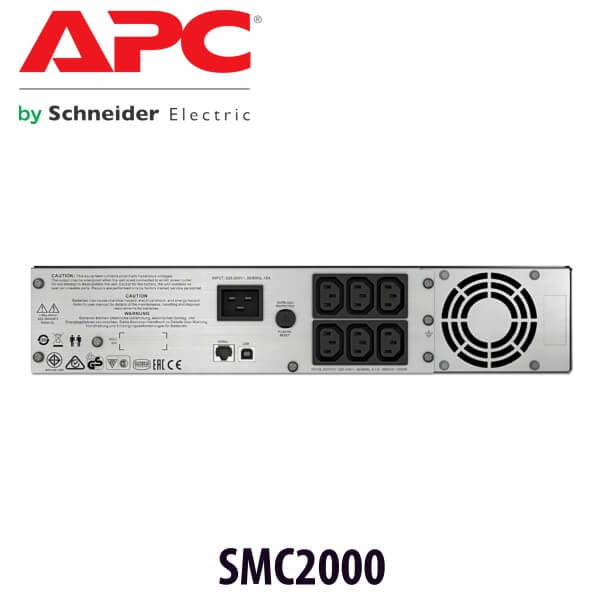

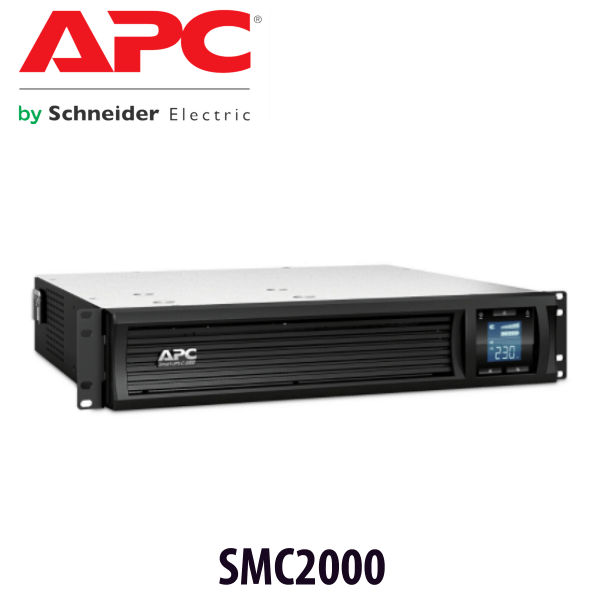

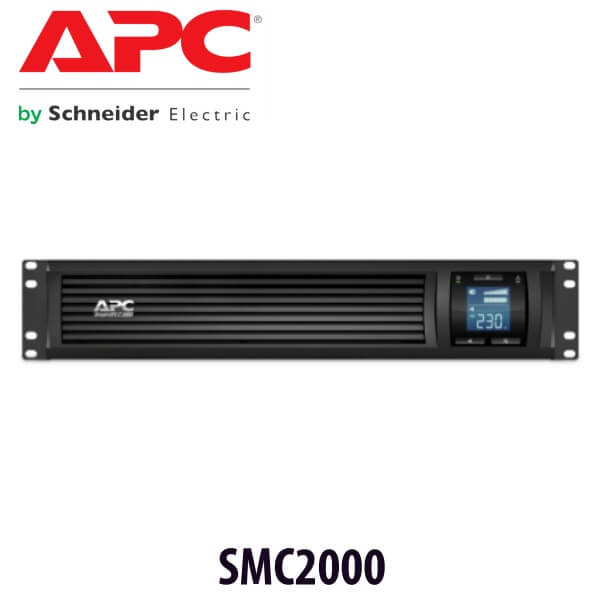

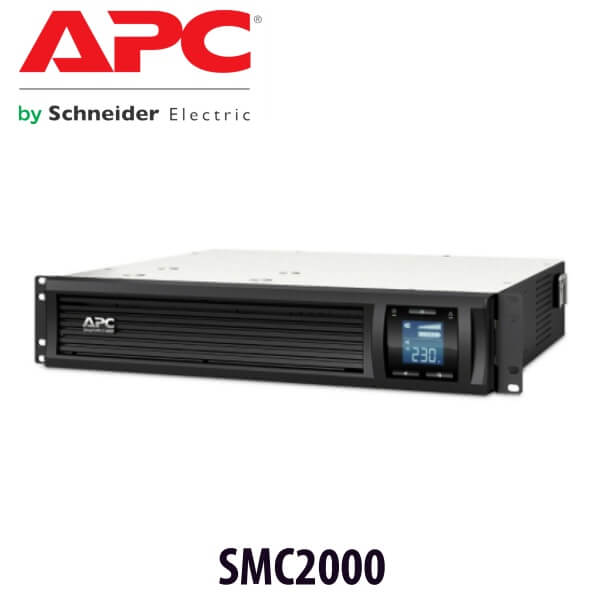

APC SMC2000 Smart UPS Dubai

The APC SMC2000 Dubai is an intelligent UPS that offers efficient network power protection from entry level to scalable runtime. It is highly suitable for use with switches, routers, point-of-sale, hubs, and many others and is applicable in businesses and retail shops. The smart UPS comes integrated with cloud-based remote power monitoring that offers reliable UPS firmware upgrades from time to time. APC SMC2000 Dubai is capable of cold-starting so as to provide temporary battery power when the utility power is out. Integrated Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection, while LCD Status Display provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. APC SMC2000 Dubai boasts of a SmartConnect, an easy-to-use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. What’s more, the APC SMC2000 Dubai has a temperature-compensated battery charging system that prolongs battery life by regulating the charge voltage according to battery temperature.

Features :

• Cold-start capable
  Provides temporary battery power when the utility power is out.
• Green mode
  Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• High online efficiency
  APC SMC2000 Dubai reduces utility costs, generates less heat.
• LCD Status Display
  APC SMC2000 Dubai is equipped with smart LED indicators that provide key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
• Pure sine wave output on battery
  Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• SmartConnect
  Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.

Technical Specifications

Output

Output Voltage Distortion : Less than 5% at full load
Output Frequency (sync to mains) : 50 Hz
Output Connections : (6) IEC 320 C13 (Battery Backup), (1) IEC 320 C19 (Battery Backup)
Max Configurable Power (Watts) : 1.3 KWatts / 2.0 kVA
Output power capacity : 1.3 KWatts / 2.0 kVA
Topology : Line Interactive
Waveform type : Sine wave

Input

Input frequency : 47 – 63 Hz
Input voltage adjustable range for mains operation : 170 – 300 V
Input voltage range for main operations : 180 – 287 V
Input Breaker Capacity : 0 A
Other Input Voltages : 220, 240
Input Connections : IEC-320 C20

Battery

Typical recharge time : 3 hour(s)
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement Battery : APCRBC148
RBC Quantity : 1
Battery Volt-Amp-Hour Capacity : 499

Communication

Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
Control panel : Multi-function LCD status and control console
Emergency Power Off (EPO) : –
Interface Port(s) : USB

Runtime

Output power capacity : 1.3 KWatts / 2.0 kVA

Surge Protection and Filtering

Surge energy rating : 300 Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Color : Black
Maximum Depth : 440 mm , 44.0 CM
Maximum Height : 216 mm , 21.6 CM
Net Weight : 27.5 KG
Units per Pallet : 24.0
Shipping Depth : 590 mm , 59.0 CM
Shipping Height : 330 mm , 33.0 CM
Shipping weight : 30.0 KG
Shipping Width : 370 mm , 37.0 CM
Maximum Width : 170 mm , 17.0 CM

Environmental

Audible noise at 1 meter from surface of unit : 45.0 dBA
Operating Temperature : 0 – 40 °C
Operating Elevation : 0-3000 meters
Operating Relative Humidity : 0 – 95 %
Storage Temperature : -15 – 45 °C
Storage Elevation : 0-15000 meters
Storage Relative Humidity : 0 – 95 %
Online thermal dissipation : 135.0 BTU/hr

Conformance

Approvals : C-tick, CE, GOST, SABS, VDE
Standard warranty : 3 Year Warranty Onsite Swap by APC Thailand

Sustainable Offer Status

RoHS : Compliant
REACH : Contains No SVHCs
