Description
Yeastar MyPBX S100 Features
IP PBX System is used to setup a complete telephony system that functions on VOIP. If you are looking for a complete private telephone system inside your office with multiline support for external users, you can choose these S-Series IP PBX System from Yeastar. MyPBX S100 in Dubai is a fully integrated collaborative rich, perfectly designed IP Telephone System for Office.Yeastar MyPBX s100 equipped with a range of integrated features to optimize your business communications.CRM Telephony Integration, Cloud Call Center integration, Voice Mail, IVR, Call Recording, CDR, eMAIL Integrations and LDAP contact management are some of the license free features coming with Yeastar S Series.
Yeastar S100 IP PBX designed for small and medium-sized organizations. It supported up to 500 users and built with the latest technology. All the models come under S-Series provide exceptional cost savings and productivity. This product is safe for hassle-free implementation and provides excellent performance. The latest unique modular design of this S-series PBX make it more attractive and surely it proofs your investment choice.
The Yeastar S100 Dubai IP PBX Phone System packs a full load of important telephony features into a solid appliance. The Yeastar S100 Dubai PBX features include an automated attendant, caller ID, do not disturb, music on hold, speed dialing and upgradable voicemail. Advanced features include dial by name, mobile extensions and one-touch recording. Bring add-ons to the phone system such as a call recording, billing system and a hotel module.

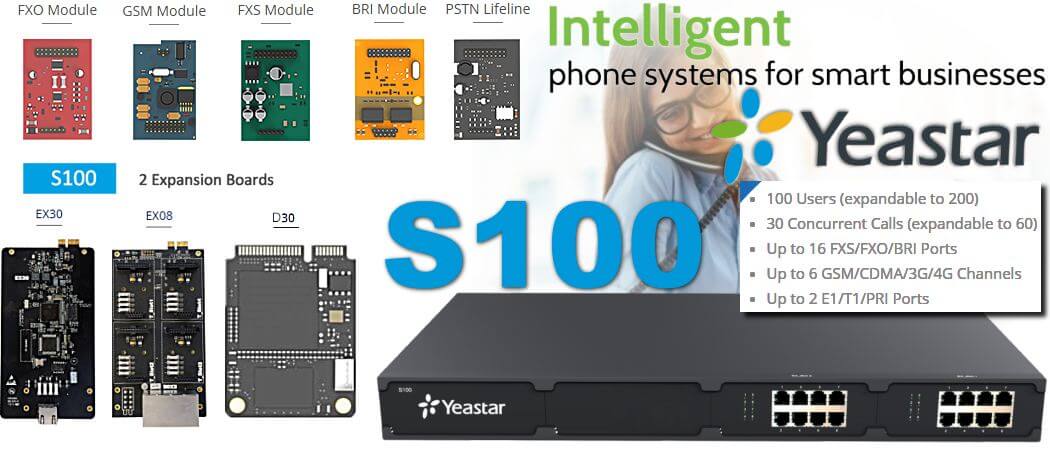

The Yeastar S100 in Dubai users can enjoy 30 simultaneous calls and these are expandable to 60. It features PRI Support with EX30 Expansion Card. The Yeastar S100 IP PBX in Dubai can also be deployed as a gateway between analog phone systems. Attach the IP PBX to phones from manufacturers such as Aastra, Grandstream, Cisco, Polycom, Snom, Fanvil, Dlink and Yealink.
The Yeastar S100 IP PBX is unique in S Series family With fixed telephony interfaces. Yeastar S100 provides higher density trunking for offices using E1 PRI signaling. S100 IP PBX is a powerful all-in-one system that provides enterprise-grade functionalities and features to SMBs. On purchasing the unit, you will have all the features at hand deprived of extra cost. You can manage your phone system from any web browser using an instinctive and user-friendly Web interface. It’s easy to set up the system, add users, and configure the settings.
Yeastar S100 IP PBX Specification
Users | 100 (up to 200) |
Max Concurrent Calls | 30 (up to 60) |
Max Analog Ports | 16 |
Max BRI Ports | 16 |
Max Cellular Ports | 6 |
Max E1/T1/J1 Ports | 2 |
VoIP Trunks | 100 |
Protocol | SIP (RFC3261), IAX2 |
Transport Protocol | UDP, TCP, TLS, SRTP |
Codec | G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC, H263, H263P, H264, MPEG4 |
DTMF | In-band, RFC4733, RFC2833, SIP INFO |
LAN | 1 × 10/100/1000 Mbps |
WAN | 1 × 10/100/1000 Mbps |
IP Services | Static IP, DHCP, VPN, Firewall, VLAN, DDNS, PPPoE, QoS, Static NAT, STUN |
Voicemail | 10000 min (expandable) |
Firewall | Yes |
T.38 Fax | Yes |
App Center | Yes |
External Storage | SD Card |
USB | 1 |
Power | AC 100-240V 50/60HZ 1.8A max |
Size (L x W x H) (cm) | 44 x 25.2 x 4.4 |
Weight | 2.5 kg |
Power Consumption | 5.5-41.2 W |
Environment | Operation Range: 0°C to 40°C, 32°F to 104°F; Storage Range: -20°C to 65°C, -4°F to 149°F; Humidity: 10-90% non-condensing |
Mounting | 1U Rack-mount |
